Flexible Mesh For Refractory Lining Holder | 19×2.0mm strips | 1" holes | 1mX1.5m | HESLY-China

China Flexible Mesh For Refractory Lining Holder | 19×2.0mm strips | 1" holes | 1mX1.5m | HESLY-China supplier
Flexible Mesh For Refractory Lining Holder | 19×2.0mm strips | 1" holes | 1mX1.5m | HESLY-China supplier Flexible Mesh For Refractory Lining Holder | 19×2.0mm strips | 1" holes | 1mX1.5m | HESLY-China supplier Flexible Mesh For Refractory Lining Holder | 19×2.0mm strips | 1" holes | 1mX1.5m | HESLY-China supplier Flexible Mesh For Refractory Lining Holder | 19×2.0mm strips | 1" holes | 1mX1.5m | HESLY-China supplier

Large Image :  Flexible Mesh For Refractory Lining Holder | 19×2.0mm strips | 1" holes | 1mX1.5m | HESLY-China

Product Details:

Place of Origin: Hesly Metal Mesh, CHINA
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: HS-2.0/20/50

Payment & Shipping Terms:

Minimum Order Quantity: 1 ㎡
Price: negotiated as per the order
Packaging Details: Pallet
Delivery Time: 15days
Payment Terms: TT/LC
Supply Ability: 800㎡/day
Contact Now
Detailed Product Description
Material: Carbon Steel / Stainless Steel Strips: 19X1.5mm
Hole: 1"

Flexible Mesh For Refractory Lining Holder | 19×2.0mm strips | 1" holes | 1mX1.5m | HESLY-China

HESLY hex metal, hex mesh & hexsteel, your best choice for  Anchoring & Reinforcement for Refractories and Concrete Flooring !!!

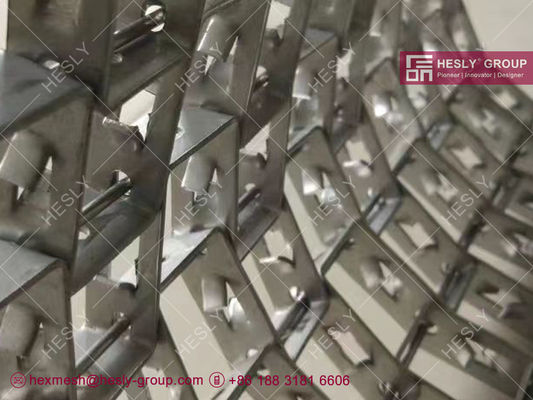

Flex Metal with lances

Flex metal refractory lining is the direct counterpart of hex metal, it performs all the same functions of reinforcement of thin wall refractory linings, while its design allows free form rolling to very small diameters. Hex metal becomes impractical to use when the section of plant being protected is of small diameter, the free rolling capabilities of flex metal allows plant as small as 150mm to lined. Typical applications include air distributors, cyclone diplegs, fan cases and all plants where the practicality of free rolling material is beneficial to maintenance activities
flexible mesh Refractory lining flexible mesh with lances HESLY
Standard Flexible Mesh Flexible Mesh With Lances



Flexible Mesh Application

Refractory Linings in Furnaces | Ducts and Flue Gas Lines | Cyclones | Reactors | Reactor Vessels | Windboxes | Fan Casings | Regenerators | Tanks | Ashpits | Heaters
Air Distributors | All Plants where the Practicality of Free Rolling Material is Beneficial to Maintenance Activities | Power Plants Cement Plants | Steel Plants | Petroleum Sector | Chemical Industry

Raw Material Typical Service Temperature

Anchorage Material

Chemical Composition

Typical Service

Temperature

AISI

DIN

C%

Si%

Mn%

P%

S%

Cr%

Ni%

others

304

1.4301

≤0.08

≤1.00

≤2.00

≤0.45

≤0.30

18.0—20.0

8.0—10.0

N

800℃

316

1.4401/1.4436

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

16.0—18.0

10.0—14.0

N:Mo

800℃

321

1.4541

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

17.0—19.0

9.0—12.0

Ti

800℃

310S

1.4845

≤0.08

≤1.50

≤2.00

≤0.45

≤0.30

24.0—26.0

19.0—22.0

1150℃

Inconel 601

2.4851

≤0.10

≤0.50

≤1.00

≤0.15

21.0—25.0

58.0—63.0

Al:Cu

1200℃

Inconel 800

1.4876

≤0.10

≤1.00

≤1.50

≤0.45

≤0.15

19.0—23.0

30.0—35.0

Al:Ti

1200℃

410S

1.4001

≤0.08

≤1.00

≤1.00

≤0.40

≤0.30

11.5—13.5

≤0.60

750℃

CARBON STEEL

VARIOUS

550℃

Features of Stainless Steel which used for Hex Mesh:

SS

Features

304

Good heat resistance ,corrosion resistance ,strength at low temperature and mechanical

properties, good hot working performance  for example punching,bending,etc , no heat

treatment influence phenomenon(nonmagnetic,U-96°C-800°C).

304L

As one kind of low carbon SS304,In the general, the similar corrosion resistance with

SS 304 .But after welding or in eliminating stress, the outstanding ability of the resistance

to corrosion of grain boundaries In under the condition of no-heat treatment, maintain

good corrosion resistance,Used in -196°C~800°C.

316

Owing to add to Mo,So the corrosion resistance of atmospheric and high temperature

strength are very good,Can be used in harsh conditions ,Processing sclerosing optimal

(nonmagnetic).

316L

As one kind of low carbon series SSS316, in addition to the same feature of  SS316,

Optimal resistance to corrosion of grain boundaries

310S

As heat-resistant part in the under the temperature 1100°C,Oxidation stability  steel ,etc

Common Specification Sheet - HESLY Hex Mesh

HESLY-hex Metal ordinary specifications

ITEM

SPECS

B

A

AF

1

1.2 X 10 X 50mm

1.2mm

10mm

40mm

2

1.2 X 15 X 50mm

1.2mm

15mm

50mm

3

1.2 X 20 X 50mm

1.2mm

20mm

50mm

4

1.5 X 10 X 50mm

1.5mm

10mm

50mm

5

1.5 X 15 X 50mm

1.5mm

15mm

50mm

6

1.5 X 20 X 50mm

1.5mm

20mm

50mm

7

1.8 X 15 X 50mm

1.8mm

15mm

50mm

8

1.8 X 20 X 50mm

1.8mm

20mm

50mm

9

1.8 X 25 X 50mm

1.8mm

25mm

50mm

10

2.0 X 15 X 50mm

2.0mm

15mm

50mm

11

2.0 X 20 X 50mm

2.0mm

20mm

50mm

12

2.0 X 25 X 50mm

2.0mm

25mm

50mm

13

2.0 X 30 X 50mm

2.0mm

30mm

50mm

14

2.0 X 30 X 80mm

2.0mm

30mm

80mm

Remark

A/F

Min: 40mm   Max: 100mm



MATERIAL

A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S

HESLY Flex Mesh


flexible mesh for refractory lining refractory lining flexible mesh
  Flexmesh with lances    Flexible Mesh with lances
310S Hexmesh China HESLY Hex metal
310S Hexmesh 310S Hexmetal
double clench hexmesh HESLY Hexmesh Refractory Lining
Double Clinch Hexmesh China Hexmetal



Package and Delivery

HESLY Hexmetal China Hexmesh
HESLY Hexmetal China Hexmesh
