AISI309s Flexible Metal Mesh for Refractory Lining | 3/4" height | 14gauge thickness | Hesly Metal Mesh - CHINA

Name: AISI309s Flexible Metal Mesh for Refractory Lining | 3/4" height | 14gauge thickness | Hesly Metal Mesh - CHINA
Brand: HESLY HexMesh & Anchor Factory - a brand of Hesly Metal Mesh Group Limited
SKU: H-GJ192050309
Availability: InStock

$China AISI309s Flexible Metal Mesh for Refractory Lining | 3/4" height | 14gauge thickness | Hesly Metal Mesh - CHINA supplier$

$AISI309s Flexible Metal Mesh for Refractory Lining | 3/4" height | 14gauge thickness | Hesly Metal Mesh - CHINA supplier$

Large Image : AISI309s Flexible Metal Mesh for Refractory Lining | 3/4" height | 14gauge thickness | Hesly Metal Mesh - CHINA

Product Details:

Place of Origin:	HESLY METAL MESH, Anping, China
Brand Name:	HESLY
Certification:	ISO9001：2008
Model Number:	H-GJ192050309

Payment & Shipping Terms:

Minimum Order Quantity:	1 SQM
Price:	Negotiated according to the order
Packaging Details:	Pallet
Delivery Time:	according to the order (in stock)
Payment Terms:	T/T, L/C at sight, D/P, Western Union
Supply Ability:	800㎡/day

Contact Now

Detailed Product Description

Material:	309,304,304H,310S,321,410 Carbon Steel	Technical:	Perforating & Riveting
Gauge:	12#, 14#, 16# Etc.	Thickness:	3/4", 1", 2" Etc
Standard Panel Size:	36"X120" (914X3050mm)	Package:	Steel Pallet

AISI309S Flexible Metal Mesh for Refractory Lining | 3/4" height |14Gauge thickness | Hesly Metal Mesh - China

Anchoring & Reinforcement for Refractories and Concrete Flooring - HESLY Hex mesh & Armouring solutions

Flexmesh is the direct counterpart of Hexmetal / Hexmesh. It performs all the same functions as Hexmesh, its design however, allows free form rolling to diameters as small as 75mm without the need for any power forming equipment.

$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$	$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$

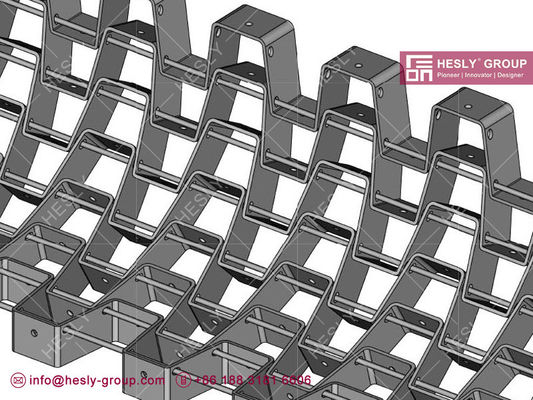

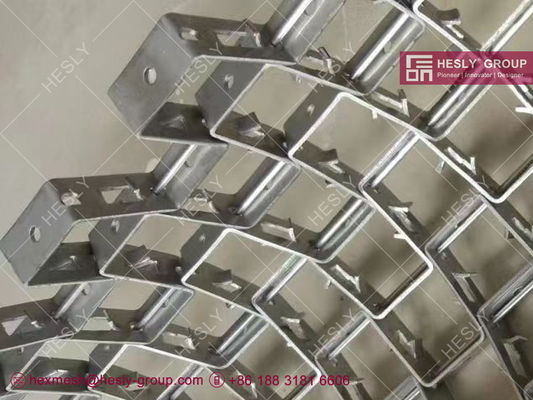

Standard Flexible Mesh	Flexible Mesh with Lances

Application of HESLY Flexible Metal Mesh

Flexible Mesh is used for armouring and retaining abrasion and acid-resistant linings as well as heat insulating linings applied to vessels, FCC units, cyclones and furnaces.

HESLY Flexible Metal is made of formed steel strips connected with rods in such a way as to guarantee perfect flexibility of the panels during installation without any pre-rolling operation.

Typical applications for hesly flexmesh are: cyclone diplegs, cyclone bracings, air distributor cylinders “wye sections”and any other pipes with narrow diameters.

Raw Material Typical Service Temperature

Anchorage Material		Chemical Composition								Typical Service Temperature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Typical Service Temperature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL		VARIOUS								550℃

Common Specification Sheet

HESLY Flexible Metal Mesh
Model	Strips				Rod	Width	Length	Weight
Model	Depth		Thickness		Rod	Width	Length	Weight
HFM2520	25mm	1”	2.0mm	14 GA	3.0mm	1.0m	1.5m
HFM2515	25mm	1”	1.5mm	17 GA	3.0mm	1.0m	1.5m
HFM1920	19mm	3/4”	2.0mm	14 GA	3.0mm	1.0m	1.5m
HFM1915	19mm	3/4”	1.5mm	17 GA	3.0mm	1.0m	1.5m
HFM1620	16mm	5/8”	2.0mm	14 GA	3.0mm	1.0m	1.5m
HFM1615	16mm	5/8”	1.5mm	17 GA	3.0mm	1.0m	1.5m
HFM1420	14mm	9/16”	2.0mm	14 GA	3.0mm	1.0m	1.5m
HFM1415	14mm	9/16”	1.5mm	17 GA	3.0mm	1.0m	1.5m

Hexmetal Gallery

**Photo Gallery - HESLY Flexible Metal Mesh**
$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$	$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$

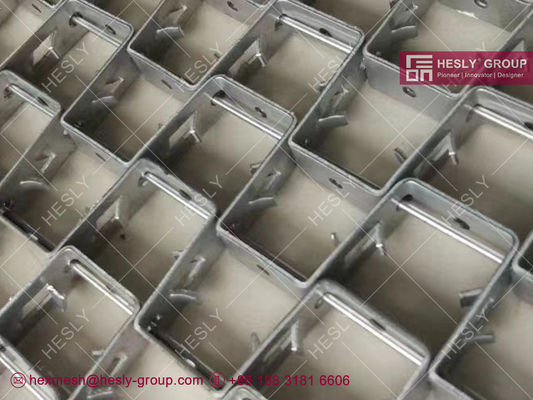

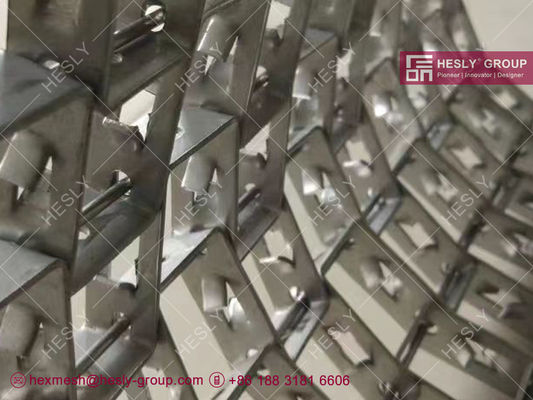

Flexible Mesh Refractory Lining	Flexible Metal Mesh China Factory
$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$	$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$
Hexsteel Refractory Linings	Hex Steel Mesh China Factory

Package and Delivery

$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$	$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$
China Hexmesh Factory	China Hexmetal Exporter

$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$
HESLY CHINA HEXMESH & ANCHORS FACTORY
$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$	+86 188 3181 6606 (whatsapp/wechat)
$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$	+86-318-7888900
$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$	+86-318-7888900
$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$	hexmesh@hesly-group.com
$AISI309s Flexible Metal Mesh for Refractory Lining \| 3/4" height \| 14gauge thickness \| Hesly Metal Mesh - CHINA$	www.hex-mesh.com
