Flexible Metal Mesh Refractory Lining | 14ga thickness | 1" deep | 1000X1000mm | HESLY Brand | China Factory

China Flexible Metal Mesh Refractory Lining | 14ga thickness | 1" deep | 1000X1000mm | HESLY Brand | China Factory supplier
Flexible Metal Mesh Refractory Lining | 14ga thickness | 1" deep | 1000X1000mm | HESLY Brand | China Factory supplier Flexible Metal Mesh Refractory Lining | 14ga thickness | 1" deep | 1000X1000mm | HESLY Brand | China Factory supplier Flexible Metal Mesh Refractory Lining | 14ga thickness | 1" deep | 1000X1000mm | HESLY Brand | China Factory supplier Flexible Metal Mesh Refractory Lining | 14ga thickness | 1" deep | 1000X1000mm | HESLY Brand | China Factory supplier Flexible Metal Mesh Refractory Lining | 14ga thickness | 1" deep | 1000X1000mm | HESLY Brand | China Factory supplier

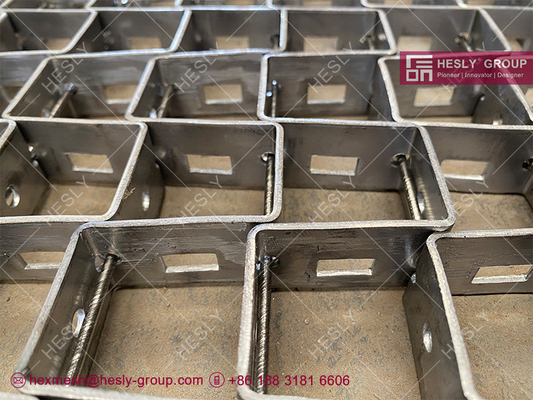

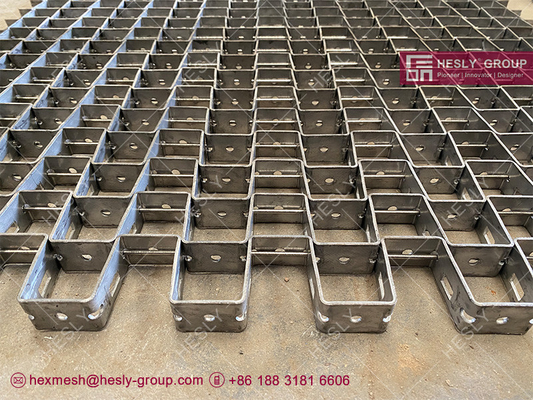

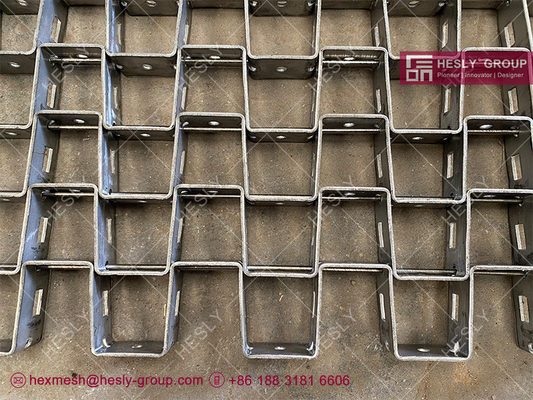

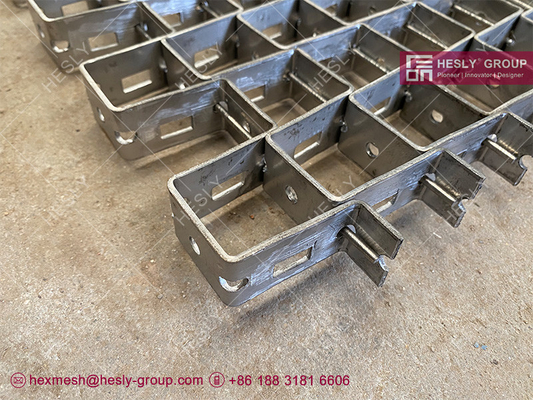

Large Image :  Flexible Metal Mesh Refractory Lining | 14ga thickness | 1" deep | 1000X1000mm | HESLY Brand | China Factory

Product Details:

Place of Origin: Hesly Metal Mesh, CHINA
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: HEX225F

Payment & Shipping Terms:

Minimum Order Quantity: 1 ㎡
Price: negotiated as per the order
Packaging Details: Pallet
Delivery Time: according to the order (in stock)
Payment Terms: TT/LC
Supply Ability: 800㎡/day
Detailed Product Description
Raw Material: Carbon Steel And Stainless Steel Thickness: 14ga
Depth: 1"

Flexible Metal Mesh Refractory Lining | 14ga thickness | 1" deep | 1000X1000mm | HESLY Brand | China Factory

Flex metal refractory lining is the direct counterpart of hex metal, it performs all the same functions of reinforcement of thin wall refractory linings, while its design allows free form rolling to very small diameters. Hex metal becomes impractical to use when the section of plant being protected is of small diameter, the free rolling capabilities of flex metal allows plant as small as 150mm to lined. Typical applications include air distributors, cyclone diplegs, fan cases and all plants where the practicality of free rolling material is beneficial to maintenance activities

Applications of Flex Metal

Since hexmesh’s flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape.

FOR REFRACTORIES
The flexibility, high strength and erosion resistant characteristics of Hexmesh make it an excellent choice for refractory linings in furnaces, reactors, cyclones, ducts and flues.
FOR FLOORS
Hexmesh provides long term protection for armor applications inside industrial floors. Specifically, loading docks, ramps, high traffic aisles for forklifts and trucks. Hot floors for foundries, forge shops and steel mills. Refuse and recycle disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads. All will benefit with Hexmesh

Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.



flexible mesh China Flexible Mesh China Supplier
Standard Bonding Hole Pattern Lance Pattern

Common Specification Sheet

HESLY Flexible Metal Mesh
Model Strips Rod Width Length Weight
Depth Thickness
HFM2520 25mm 1” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM2515 25mm 1” 1.5mm 17 GA 3.0mm 1.0m 1.5m
HFM1920 19mm 3/4” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM1915 19mm 3/4” 1.5mm 17 GA 3.0mm 1.0m 1.5m
HFM1620 16mm 5/8” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM1615 16mm 5/8” 1.5mm 17 GA 3.0mm 1.0m 1.5m
HFM1420 14mm 9/16” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM1415 14mm 9/16” 1.5mm 17 GA 3.0mm 1.0m 1.5m

Typical Service Temperature

Anchorage Material Chemical Composition

Typical Service

Temperature

AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 750℃
CARBON STEEL VARIOUS 550℃
