Low Carbon Steel Hex Metal Mesh | 2.5mm thickness | 25mm depth | 60mm hexagonal hole - Hesly China Factory Exporter

China Low Carbon Steel Hex Metal Mesh | 2.5mm thickness | 25mm depth | 60mm hexagonal hole - Hesly China Factory Exporter supplier
Low Carbon Steel Hex Metal Mesh | 2.5mm thickness | 25mm depth | 60mm hexagonal hole - Hesly China Factory Exporter supplier Low Carbon Steel Hex Metal Mesh | 2.5mm thickness | 25mm depth | 60mm hexagonal hole - Hesly China Factory Exporter supplier Low Carbon Steel Hex Metal Mesh | 2.5mm thickness | 25mm depth | 60mm hexagonal hole - Hesly China Factory Exporter supplier Low Carbon Steel Hex Metal Mesh | 2.5mm thickness | 25mm depth | 60mm hexagonal hole - Hesly China Factory Exporter supplier Low Carbon Steel Hex Metal Mesh | 2.5mm thickness | 25mm depth | 60mm hexagonal hole - Hesly China Factory Exporter supplier

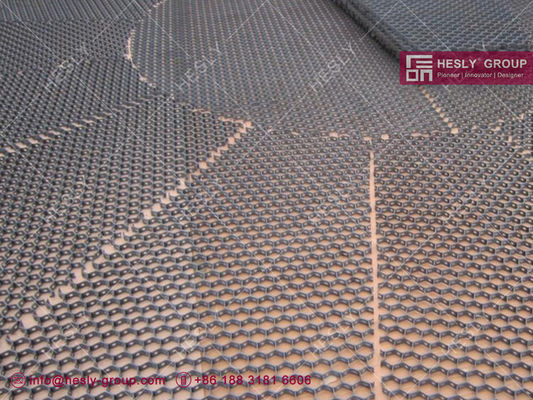

Large Image :  Low Carbon Steel Hex Metal Mesh | 2.5mm thickness | 25mm depth | 60mm hexagonal hole - Hesly China Factory Exporter

Product Details:

Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY™
Certification: ISO9001:2008
Model Number: HEX252560

Payment & Shipping Terms:

Minimum Order Quantity: 1 SQM
Price: Negotiated according to the order
Packaging Details: Pallet
Delivery Time: according to the order (in stock)
Payment Terms: T/T, L/C at sight, D/P, Western Union
Supply Ability: 800㎡/day
Contact Now
Detailed Product Description
Construction Type: Clinched Bar Shape: Rectangular Bar
Primary Material: Stainless Steel Alloy, Grade Or Type: AISI 304H
Material Finish: Mill Finish Product Surface: Smooth
Sizes: 3'x10'

Low Carbon Steel Hex Metal Mesh | 2.5mm thickness | 25mm depth | 60mm hexagonal hole - Hesly China Factory Exporter

HESLY Hexmesh range is is a unique honeycombed steel designed to provide excellent retention and reinforcement of thin wall refractories. It fully complements dense hydraulic and chemically bonded refractories in resisting erosion.

Hesly metal mesh has been manufacturing hex mesh for wear resistant applications for more than 10 years, so we understand the strict performance and technical requirements that exist across a range of industries, such as petroleum refineries, Alumina calciners and cement plants.

Whether you need standard size panels, custom-shapes or rolled products, Antec has the equipment, expertise and experience to meet your needs quickly and cost-effectively.



HESLY Hexsteel China Factory HESLY Hexsteel China Factory

Hexsteel: Bonding Hole Type

Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

Hex-metal: Pronges/Lances Type

this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.





Application of HESLY Hex mesh grid:

  • As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
  • Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
  • Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.

Typical Service Temperature:

Anchorage Material Chemical Composition

Typical Service

Temperature

AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 750℃
CARBON STEEL VARIOUS 550℃



Common Specification Sheet

ITEM SPECS B A AF
1 1.2 X 10 X 50mm 1.2mm 10mm 40mm
2 1.2 X 15 X 50mm 1.2mm 15mm 50mm
3 1.2 X 20 X 50mm 1.2mm 20mm 50mm
4 1.5 X 10 X 50mm 1.5mm 10mm 50mm
5 1.5 X 15 X 50mm 1.5mm 15mm 50mm
6 1.5 X 20 X 50mm 1.5mm 20mm 50mm
7 1.8 X 15 X 50mm 1.8mm 15mm 50mm
8 1.8 X 20 X 50mm 1.8mm 20mm 50mm
9 1.8 X 25 X 50mm 1.8mm 25mm 50mm
10 2.0 X 15 X 50mm 2.0mm 15mm 50mm
11 2.0 X 20 X 50mm 2.0mm 20mm 50mm
12 2.0 X 25 X 50mm 2.0mm 25mm 50mm
13 2.0 X 30 X 50mm 2.0mm 30mm 50mm
14 2.0 X 30 X 80mm 2.0mm 30mm 80mm
Remark A/F Min: 40mm Max: 100mm
  MATERIAL A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S



Hexmetal Gallery

Photo Gallery - HESLY Hexsteel Mesh
carbon steel hexmesh China supplier refractory hexmesh China Supplier
Refractory Hexmesh Exporter HESLY Hexmesh Factory
AISI 304H Hexmesh Refractory HESLY low carbon steel hexmesh
Hexmetal Mesh CHINA Factory Low Carbon Steel Hexmesh



Package and Delivery



Hexmetal Refractory Anchors CHINA HEXMETAL
China Hexmesh Factory China Hexmetal Exporter



HESLY Refractory Hex Metal Mesh
    HESLY CHINA HEXMESH & ANCHORS FACTORY
