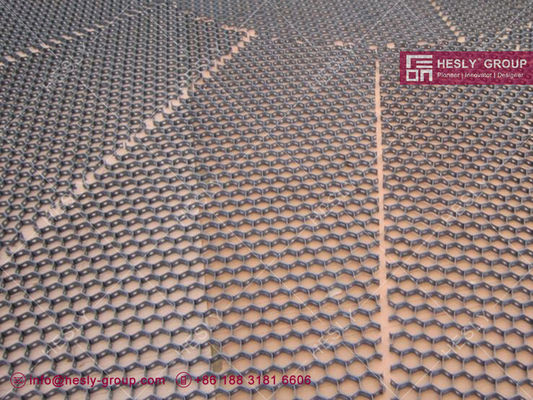

Mild Carbon Steel Hexmetal | 10mm depth | 50mm hexagonal hole | prongs type | Hesly Brand China Supplier
Hexmetal is a hexagon shaped grid used in the installation of thick linings. Hexmetal supports the lining and prevents slumps. It retards erosion, corrosion, cracking, blistering, pitting or collapse thereby lengthening the life of the lining. Hexmetal is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the steel shell and the armored surface. The slots permit passage of the castable which forms a key between adjacent cells. Available in standard and lance pattern.
|
|
Standard Bonding Hole Pattern |
Lance Pattern |
FOR REFRACTORIES
The flexibility, high strength and erosion resistant characteristics of Hexmesh make it an excellent choice for refractory linings in furnaces, reactors, cyclones, ducts and flues.
FOR FLOORS
Hexmesh provides long term protection for armor applications inside industrial floors. Specifically, loading docks, ramps, high traffic aisles for forklifts and trucks. Hot floors for foundries, forge shops and steel mills. Refuse and recycle disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads. All will benefit with Hexmesh
Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.
The flexibility of HESLY’s Hex Mesh allows it to be rolled, and easily conforms to circular shapes. It is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the metal shell and the armoured surface.
Typical Service Temperature of Different Material for Hexmesh:
Anchorage Material |
Chemical Composition |
Typical Service
Temperature
|
AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
CARBON STEEL |
VARIOUS |
550℃ |
General Specifications of Hexmesh/Hex Metal:
HESLY Hexmesh ordinary specifications |
ITEM |
SPECS |
B |
A |
AF |
1 |
1.2 X 10 X 50mm |
1.2mm |
10mm |
40mm |
2 |
1.2 X 15 X 50mm |
1.2mm |
15mm |
50mm |
3 |
1.2 X 20 X 50mm |
1.2mm |
20mm |
50mm |
4 |
1.5 X 10 X 50mm |
1.5mm |
10mm |
50mm |
5 |
1.5 X 15 X 50mm |
1.5mm |
15mm |
50mm |
6 |
1.5 X 20 X 50mm |
1.5mm |
20mm |
50mm |
7 |
1.8 X 15 X 50mm |
1.8mm |
15mm |
50mm |
8 |
1.8 X 20 X 50mm |
1.8mm |
20mm |
50mm |
9 |
1.8 X 25 X 50mm |
1.8mm |
25mm |
50mm |
10 |
2.0 X 15 X 50mm |
2.0mm |
15mm |
50mm |
11 |
2.0 X 20 X 50mm |
2.0mm |
20mm |
50mm |
12 |
2.0 X 25 X 50mm |
2.0mm |
25mm |
50mm |
13 |
2.0 X 30 X 50mm |
2.0mm |
30mm |
50mm |
14 |
2.0 X 30 X 80mm |
2.0mm |
30mm |
80mm |
15 |
2.0 X 20 X 100mm |
2.0mm |
20mm |
100mm |
Remark |
A/F |
Min: 40mm Max: 100mm |
|
MATERIAL |
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S |
HESLY HexMetal:
Reference Photos of Hexmetal
|
|
Mild Carbon Hexsteel Mesh |
Hexmetal with lances China Exporter |
|
|
HexMetal with Lances |
Hexmetal with Lances |
|
|
Hexmetal with Lances |
Hexmetal with Bonding Hole |
|
|
Hexmetal China Factory |
Hexmetal China Factory |
