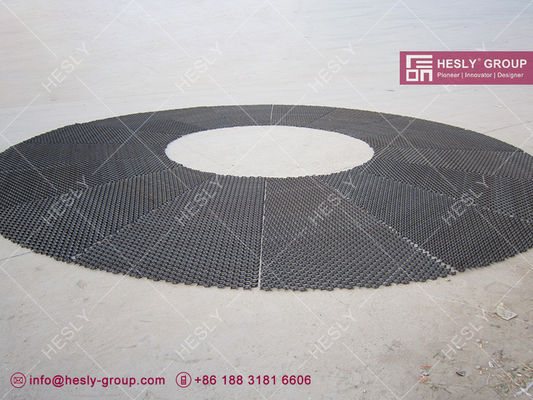

1" depth 16gauge Low Carbon Mild Steel Hexmetal with lances, 1-7/8" hexagonal hole
-
-
Large Image :
1" depth 16gauge Low Carbon Mild Steel Hexmetal with lances, 1-7/8" hexagonal hole
|
Product Details:
| Place of Origin: |
EON Company, CHINA |
| Brand Name: |
HESLY |
| Certification: |
ISO9001, SGS |
| Model Number: |
H-GJ152550 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
10 SQM |
| Price: |
USD 18.50 to USD72.00/SQM |
| Packaging Details: |
Steel Pallet |
| Delivery Time: |
12 working days/20'GP |
| Payment Terms: |
T/T, L/C at sight, D/P |
| Supply Ability: |
500SQM / day |
|
Detailed Product Description
| Material: |
Low Carbon Mild Steel |
Technial: |
Perforated & Riveting |
| Hole: |
Hexagonal 50X50mm Etc |
Height: |
10mm/15mm/25mm/30mm/50mm |
| Strip THK: |
1.0/1.2/1.5/2.0mm Etc |
Panel Size: |
1X1m, 914X3050mm |

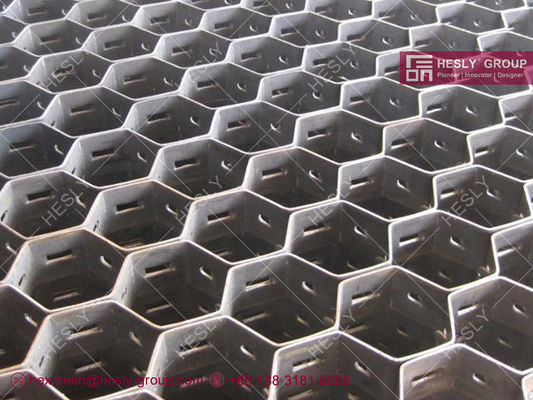

1" depth 16gauge Low Carbon Mild Steel Hexmetal with lances, 1-7/8" hexagonal hole
Hexmetal is a hexagon shaped grid used in the installation of thick linings. Hexmetal supports the lining and prevents slumps. It retards erosion, corrosion, cracking, blistering, pitting or collapse thereby lengthening the life of the lining. Hexmetal is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the steel shell and the armored surface. The slots permit passage of the castable which forms a key between adjacent cells. Available in standard and lance pattern.
 |
|
| Standard Bonding Hole Pattern |
Lance Pattern |
Applications / Industries of Hex Mesh
Refractory Linings in Furnaces | Ducts and Flue Gas Lines | Cyclones | Reactors | Reactor Vessels | Windboxes | Fan Casings | Regenerators | Tanks | Ashpits | Heaters
Air Distributors | All Plants where the Practicality of Free Rolling Material is Beneficial to Maintenance Activities | Power Plants Cement Plants | Steel Plants | Petroleum Sector | Chemical Industry
Material Typical Service Temperature
| Anchorage Material |
Chemical Composition |
Typical Service
Temperature
|
| AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
| 304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
| 316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
| 321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
| 310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
| Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
| Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
| 410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
| CARBON STEEL |
VARIOUS |
550℃ |
Commond Specification Sheet
| HESLY-hexsteel ordinary specifications |
| ITEM |
SPECS |
B |
A |
AF |
| 1 |
1.2 X 10 X 50mm |
1.2mm |
10mm |
40mm |
| 2 |
1.2 X 15 X 50mm |
1.2mm |
15mm |
50mm |
| 3 |
1.2 X 20 X 50mm |
1.2mm |
20mm |
50mm |
| 4 |
1.5 X 10 X 50mm |
1.5mm |
10mm |
50mm |
| 5 |
1.5 X 15 X 50mm |
1.5mm |
15mm |
50mm |
| 6 |
1.5 X 20 X 50mm |
1.5mm |
20mm |
50mm |
| 7 |
1.8 X 15 X 50mm |
1.8mm |
15mm |
50mm |
| 8 |
1.8 X 20 X 50mm |
1.8mm |
20mm |
50mm |
| 9 |
1.8 X 25 X 50mm |
1.8mm |
25mm |
50mm |
| 10 |
2.0 X 15 X 50mm |
2.0mm |
15mm |
50mm |
| 11 |
2.0 X 20 X 50mm |
2.0mm |
20mm |
50mm |
| 12 |
2.0 X 25 X 50mm |
2.0mm |
25mm |
50mm |
| 13 |
2.0 X 30 X 50mm |
2.0mm |
30mm |
50mm |
| 14 |
2.0 X 30 X 80mm |
2.0mm |
30mm |
80mm |
| Remark |
A/F |
Min: 40mm Max: 100mm |
| |
MATERIAL |
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S |
Reference Photos
|
|
| Ducts and Flue Gas Lines Hexmesh |
310S Hexmesh for Cyclones |
|
|
| Hexmesh for Windboxed Linings |
Hexmesh For Fan Casings |
|
|
| Hexmesh Ashpits |
Hexmesh Reactor Vessels |
