HESLY Hexagonal Mesh for Refractory Lining | AISI410S stainless steel | 16gague thickness

China HESLY Hexagonal Mesh for Refractory Lining | AISI410S stainless steel | 16gague thickness supplier
HESLY Hexagonal Mesh for Refractory Lining | AISI410S stainless steel | 16gague thickness supplier HESLY Hexagonal Mesh for Refractory Lining | AISI410S stainless steel | 16gague thickness supplier HESLY Hexagonal Mesh for Refractory Lining | AISI410S stainless steel | 16gague thickness supplier HESLY Hexagonal Mesh for Refractory Lining | AISI410S stainless steel | 16gague thickness supplier HESLY Hexagonal Mesh for Refractory Lining | AISI410S stainless steel | 16gague thickness supplier

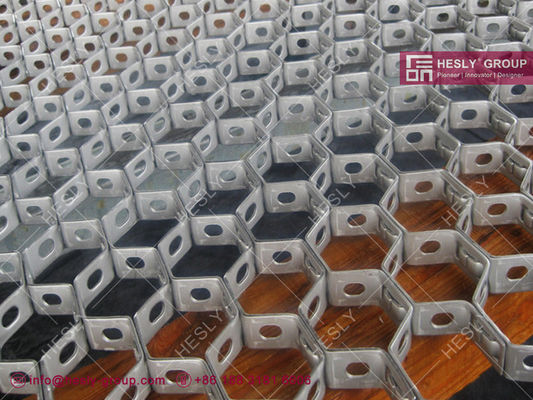

Large Image :  HESLY Hexagonal Mesh for Refractory Lining | AISI410S stainless steel | 16gague thickness

Product Details:

Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: H-GJ192050410S

Payment & Shipping Terms:

Minimum Order Quantity: 1 SQM
Price: Negotiated according to the order
Packaging Details: Pallet
Delivery Time: according to the order (in stock)
Payment Terms: T/T, L/C at sight, D/P, Western Union
Supply Ability: 800㎡/day
Contact Now
Detailed Product Description
Material: 309,304,304H,310S,321,410 Carbon Steel Technical: Perforating & Riveting
Gauge: 12#, 14#, 16# Etc. Thickness: 3/4", 1", 2" Etc
Standard Panel Size: 36"X120" (914X3050mm) Package: Steel Pallet

AISI410S Hexagonal Metal Grating for refractory lining

321 hex metal refractory lining China SupplierHesly's Hex Metal range is defined as a unique hexagonal cellular mesh steel, made of flat bar which is designed to provide brilliant retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining’s upper crust, retarding erosion, corrosion, blistering and cracking.

Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.

Applications of Hex-Metal

Since hexmetal’s flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape.

FOR REFRACTORIES
The flexibility, high strength and erosion resistant characteristics of Hexmesh make it an excellent choice for refractory linings in furnaces, reactors, cyclones, ducts and flues.
FOR FLOORS
Hexmesh provides long term protection for armor applications inside industrial floors. Specifically, loading docks, ramps, high traffic aisles for forklifts and trucks. Hot floors for foundries, forge shops and steel mills. Refuse and recycle disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads. All will benefit with Hexmesh

Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.

316 stainless steel hexmetal with bonding hole Stainless Steel Hexmetal with lance China Supplier
Standard Bonding Hole Pattern Lance Pattern

Typical Service Temperature:

Anchorage Material

Chemical Composition

Typical Service

Temperature

AISI

DIN

C%

Si%

Mn%

P%

S%

Cr%

Ni%

others

304

1.4301

≤0.08

≤1.00

≤2.00

≤0.45

≤0.30

18.0—20.0

8.0—10.0

N

800℃

316

1.4401/1.4436

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

16.0—18.0

10.0—14.0

N:Mo

800℃

321

1.4541

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

17.0—19.0

9.0—12.0

Ti

800℃

310S

1.4845

≤0.08

≤1.50

≤2.00

≤0.45

≤0.30

24.0—26.0

19.0—22.0

1150℃

Inconel 601

2.4851

≤0.10

≤0.50

≤1.00

≤0.15

21.0—25.0

58.0—63.0

Al:Cu

1200℃

Inconel 800

1.4876

≤0.10

≤1.00

≤1.50

≤0.45

≤0.15

19.0—23.0

30.0—35.0

Al:Ti

1200℃

410S

1.4001

≤0.08

≤1.00

≤1.00

≤0.40

≤0.30

11.5—13.5

≤0.60

750℃

CARBON STEEL

VARIOUS

550℃

Hexmesh Ordinary Specifications:

HEX-MESH / HEXMETAL / HEXSTEEL

ITEM

SPECS

B

A

AF

1

1.2 X 10 X 50mm

1.2mm

10mm

40mm

2

1.2 X 15 X 50mm

1.2mm

15mm

50mm

3

1.2 X 20 X 50mm

1.2mm

20mm

50mm

4

1.5 X 10 X 50mm

1.5mm

10mm

50mm

5

1.5 X 15 X 50mm

1.5mm

15mm

50mm

6

1.5 X 20 X 50mm

1.5mm

20mm

50mm

7

1.8 X 15 X 50mm

1.8mm

15mm

50mm

8

1.8 X 20 X 50mm

1.8mm

20mm

50mm

9

1.8 X 25 X 50mm

1.8mm

25mm

50mm

10

2.0 X 15 X 50mm

2.0mm

15mm

50mm

11

2.0 X 20 X 50mm

2.0mm

20mm

50mm

12

2.0 X 25 X 50mm

2.0mm

25mm

50mm

13

2.0 X 30 X 50mm

2.0mm

30mm

50mm

14

2.0 X 30 X 80mm

2.0mm

30mm

80mm

Remark

A/F

Min: 40mm   Max: 100mm



MATERIAL

A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti, 310S, 410S

HEX-MESH PHOTOS

Hexagonal Mesh Grating 20x2x50mm China Exporter China Hex Mesh Factory
Hexagonal Mesh Grating Hexagonal Mesh Grating
Hexagonal Mesh Grating AISI410S China 2.0X50mm depth Hexsteel Grid China Factory
Hex mesh with Lances Hexagonal Mesh Grating
China Hexagonal Mesh Exporter Low carbon mild steel hexmesh China Supplier
Hex-mesh with reinforced strip Hex Mesh with reinforced strip
Hex Mesh for refractory lining Hex Metal refractory lining China Supplier
Hexagonal Mesh Grating Hexagonal Mesh Grating
China Hexmesh Grating Factory Hexmesh Supplier China
Hex Metal Sheet Hex Metal Sheet



Package and Delivery



HESLY Hexsteel Factory CHINA refractory hexagonal mesh
China Hexmesh Factory China Hexmetal Exporter





HESLY Refractory Hex Metal Mesh
