Product Details:

Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: H-GJ192050

Payment & Shipping Terms:

Minimum Order Quantity: 1 ㎡
Price: Negotiated according to the order
Packaging Details: Pallet
Delivery Time: according to the order (in stock)
Payment Terms: T/T, L/C at sight, D/P, Western Union
Supply Ability: 800㎡/day
Contact Now
Detailed Product Description
Material: 410S,304,304H,310S, Carbon Steel Technical: Perforating & Riveting
Gauge: 12#, 14#, 16# Etc. Thickness: 3/4", 1", 2" Etc
Standard Panel Size: 36"X120" (914X3050mm) Package: Steel Pallet

12gauge X 3/4" AISI310S Stainless Steel Hexsteel | China 310S Hexsteel Factory

HESLY® Hexmesh

HESLY Hexsteel range is defined as a unique hexagonal cellular mesh steel, made of flat bar which is designed to provide brilliant retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining’s upper crust, retarding erosion, corrosion, blistering and cracking.
Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.
The flexibility of HESLY Steel’s Hex Metal allows it to be rolled, and easily conforms to circular shapes. It is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the metal shell and the armoured surface.



HESLY Hexsteel China Factory HESLY Hexsteel China Factory

Hexsteel: Bonding Hole Type

Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

Hex-metal: Pronges/Lances Type

this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.





Application of HESLY Hex mesh grid:

  • As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
  • Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
  • Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.

HESLY hexsteel Typical Service Temperature:

Anchorage Material Chemical Composition

Typical Service

Temperature

AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 750℃
CARBON STEEL VARIOUS 550℃



Common Specification Sheet

ITEM SPECS B A AF
1 1.2 X 10 X 50mm 1.2mm 10mm 40mm
2 1.2 X 15 X 50mm 1.2mm 15mm 50mm
3 1.2 X 20 X 50mm 1.2mm 20mm 50mm
4 1.5 X 10 X 50mm 1.5mm 10mm 50mm
5 1.5 X 15 X 50mm 1.5mm 15mm 50mm
6 1.5 X 20 X 50mm 1.5mm 20mm 50mm
7 1.8 X 15 X 50mm 1.8mm 15mm 50mm
8 1.8 X 20 X 50mm 1.8mm 20mm 50mm
9 1.8 X 25 X 50mm 1.8mm 25mm 50mm
10 2.0 X 15 X 50mm 2.0mm 15mm 50mm
11 2.0 X 20 X 50mm 2.0mm 20mm 50mm
12 2.0 X 25 X 50mm 2.0mm 25mm 50mm
13 2.0 X 30 X 50mm 2.0mm 30mm 50mm
14 2.0 X 30 X 80mm 2.0mm 30mm 80mm
Remark A/F Min: 40mm Max: 100mm
  MATERIAL A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S



HESLY Hexsteel Typical Service Temperature:

Anchorage Material Chemical Composition

Typical Service

Temperature

AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 750℃
CARBON STEEL VARIOUS 550℃



Hexmetal Gallery

Photo Gallery - HESLY Hexsteel Mesh
AISI310 Hexsteel Anthors China aisi310 hexsteel China
Refractory Hexsteel Exporter HESLY Hexsteel Factory
hexsteel anchors HESLY CHINA AISI310 Hexmesh China Exporter
Hex-mesh With Pronges Hex Steel Mesh HESLY Brand

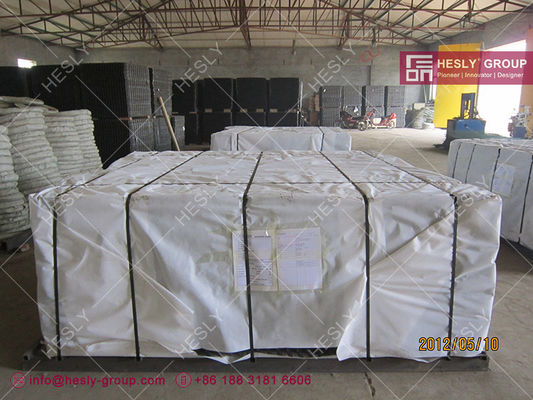

Package and Delivery
