AISI304 25X2.0mm X 50mm Hexagonal Hole Stainless Steel Hexmesh | China Factory Exporter

China AISI304 25X2.0mm X 50mm Hexagonal Hole Stainless Steel Hexmesh | China Factory Exporter supplier
AISI304 25X2.0mm X 50mm Hexagonal Hole Stainless Steel Hexmesh | China Factory Exporter supplier AISI304 25X2.0mm X 50mm Hexagonal Hole Stainless Steel Hexmesh | China Factory Exporter supplier AISI304 25X2.0mm X 50mm Hexagonal Hole Stainless Steel Hexmesh | China Factory Exporter supplier AISI304 25X2.0mm X 50mm Hexagonal Hole Stainless Steel Hexmesh | China Factory Exporter supplier AISI304 25X2.0mm X 50mm Hexagonal Hole Stainless Steel Hexmesh | China Factory Exporter supplier

Large Image :  AISI304 25X2.0mm X 50mm Hexagonal Hole Stainless Steel Hexmesh | China Factory Exporter

Product Details:

Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: HEX252310S

Payment & Shipping Terms:

Minimum Order Quantity: 1㎡
Price: Negotiated according to the order
Packaging Details: Pallet
Delivery Time: according to the order (hexmetal in stock)
Payment Terms: TT/LC
Supply Ability: 800㎡/day
Detailed Product Description
Type: Perforated Mesh Application: Protecting Mesh
Weave Style: Plain Weave Technique: Perforated

310S hex steel grid, 310S hexsteel, used for Cyclones

China Hex Mesh Supplier

China HESLY Hex steel & Anchors - Refractory Lining

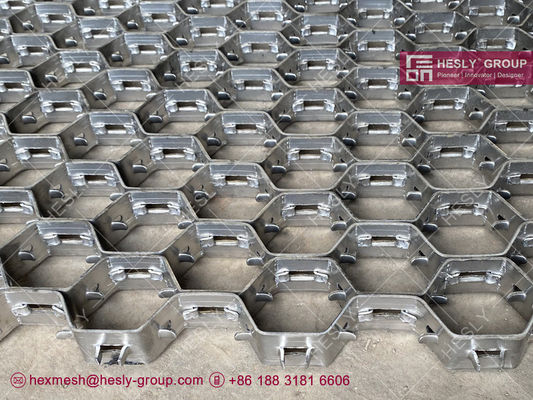

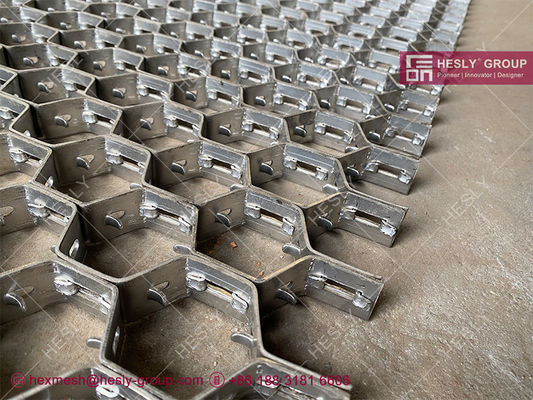

HESLY's 310S Hex steel (Hex mesh, Hex metal) is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of Hexsteel's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the surface material because they are reflected away from the surface by the metal cellular grid.

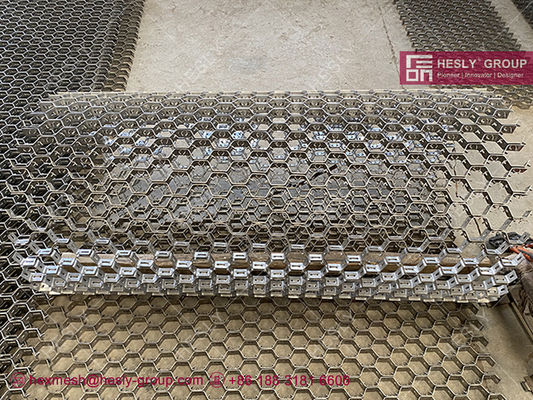

Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration.

Flex Hexsteel

SS304 hexsteel lining

Flex Hexmetal is the direct counterpart of Hex metal. It performs all the same functions in reinforcement of thin wall refractory linings, while its' design allows free form rolling to very small diameters. Hex metal becomes impractical when the section of plant being protected is of small diameter. The free rolling capabilities of Flex metal allows plant as small as 150 mm to be lined. Typical applications include Air Distributors, Cyclone Dip legs, Fan Cases, or any other plants where the practicality of free rolling material is beneficial to maintenance activities.





Refractory Anchors

HESLY's Armour-Anchors can be used in combination with Hexmetals / Flexmetals or as stand alone systems.

HESLY’s Wire Formed Anchors
Wire Formed Anchors are configured to suit all light, medium and dense refractories in providing maximum support during refractory application and maximum retention of refractories during plant service. Consideration is given to expansion, heat transfer, method of application, environmental conditions and design of host unit for individual applications. Anchors are designed for Manual and Semi-Automatic Welding.

The range of applications is limited only by the structural strength of the anchor section. The maximum section size of wire formed anchors is 3/8" (9.5mm). Typical applications include most process plant including furnaces, ductwork, heaters or reactors.


HESLY’s Plate Formed Anchors
Plate Formed Anchors are divided into Metallic Anchors and Ceramic Supports. The Metallic Anchors are designed typically for ceramic fiber and for light or medium weight refractories, again configured to provide maximum retention during plant service. The Ceramic Anchor Supports "C" Clips are designed to retain most standard pattern ceramic anchors (Scissor Clip types are available as wire formed) Mainly for light and medium weight duties, their typically small cross section provides low heat transfer with section size providing easy manual or semi-automatic welding. "C" Clips retain ceramic anchors used for anchoring moldable refractories.



HESLY’s Rod Formed Anchors
Rod Formed Anchors / Studs (larger than 3/8" diameter) Heavy weight anchors are used only in the most arduous conditions. They are designed to provide support and attachment of refractory pre-cast sections to plant steelwork, and provide an effective anchoring system in high stress situations. Their design shape minimizes and controls heat transfer and thus provides maximum strength at elevated temperatures. Refractory lining situations that have attendant high live loads occur in plant such as Rotary Kilns, where deep roof and side wall lining of dense refractories require maximum support during operating conditions or heavy weight pre-cast blocks are retained by bolt through, weld on and slip on systems.

USES FOR HESLY HEX METAL

Refractory Linings in Furnaces | Ducts and Flue Gas Lines | Cyclones | Reactors | Reactor Vessels | Windboxes | Fan Casings Regenerators | Tanks | Ashpits | Heaters

HESLY hexmesh Typical Service Temperature:

Anchorage Material

Chemical Composition

Typical Service

Temperature

AISI

DIN

C%

Si%

Mn%

P%

S%

Cr%

Ni%

others

304

1.4301

≤0.08

≤1.00

≤2.00

≤0.45

≤0.30

18.0—20.0

8.0—10.0

N

800℃

316

1.4401/1.4436

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

16.0—18.0

10.0—14.0

N:Mo

800℃

321

1.4541

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

17.0—19.0

9.0—12.0

Ti

800℃

310S

1.4845

≤0.08

≤1.50

≤2.00

≤0.45

≤0.30

24.0—26.0

19.0—22.0

1150℃

Inconel 601

2.4851

≤0.10

≤0.50

≤1.00

≤0.15

21.0—25.0

58.0—63.0

Al:Cu

1200℃

Inconel 800

1.4876

≤0.10

≤1.00

≤1.50

≤0.45

≤0.15

19.0—23.0

30.0—35.0

Al:Ti

1200℃

410S

1.4001

≤0.08

≤1.00

≤1.00

≤0.40

≤0.30

11.5—13.5

≤0.60

750℃

CARBON STEEL

VARIOUS

550℃

Features of Stainless Steel which used for Hex Mesh:

SS

Features

304

Good heat resistance ,corrosion resistance ,strength at low temperature and mechanical

properties, good hot working performance  for example punching,bending,etc , no heat

treatment influence phenomenon(nonmagnetic,U-96°C-800°C).

304L

As one kind of low carbon SS304,In the general, the similar corrosion resistance with

SS 304 .But after welding or in eliminating stress, the outstanding ability of the resistance

to corrosion of grain boundaries In under the condition of no-heat treatment, maintain

good corrosion resistance,Used in -196°C~800°C.

316

Owing to add to Mo,So the corrosion resistance of atmospheric and high temperature

strength are very good,Can be used in harsh conditions ,Processing sclerosing optimal

(nonmagnetic).

316L

As one kind of low carbon series SSS316, in addition to the same feature of  SS316,

Optimal resistance to corrosion of grain boundaries

310S

As heat-resistant part in the under the temperature 1100°C,Oxidation stability  steel ,etc

HESLY hex metal ordinary specs:

HESLY-hex Metal ordinary specifications

ITEM

SPECS

B

A

AF

1

1.2 X 10 X 50mm

1.2mm

10mm

40mm

2

1.2 X 15 X 50mm

1.2mm

15mm

50mm

3

1.2 X 20 X 50mm

1.2mm

20mm

50mm

4

1.5 X 10 X 50mm

1.5mm

10mm

50mm

5

1.5 X 15 X 50mm

1.5mm

15mm

50mm

6

1.5 X 20 X 50mm

1.5mm

20mm

50mm

7

1.8 X 15 X 50mm

1.8mm

15mm

50mm

8

1.8 X 20 X 50mm

1.8mm

20mm

50mm

9

1.8 X 25 X 50mm

1.8mm

25mm

50mm

10

2.0 X 15 X 50mm

2.0mm

15mm

50mm

11

2.0 X 20 X 50mm

2.0mm

20mm

50mm

12

2.0 X 25 X 50mm

2.0mm

25mm

50mm

13

2.0 X 30 X 50mm

2.0mm

30mm

50mm

14

2.0 X 30 X 80mm

2.0mm

30mm

80mm

Remark

A/F

Min: 40mm   Max: 100mm



MATERIAL

A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S

HESLY Flex metal:

Hexsteel for refractory lining

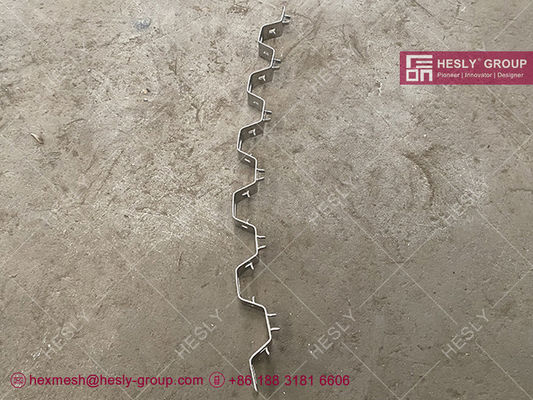

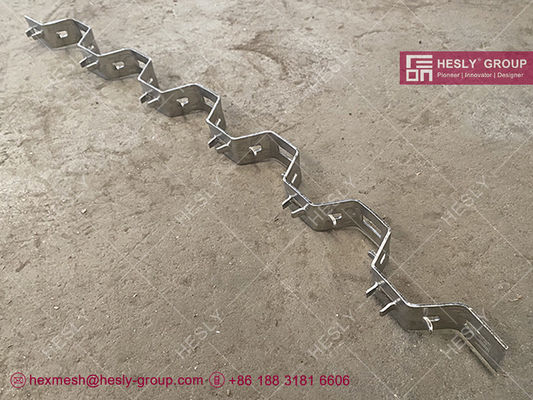

310S hexmesh strips 310S Hexmetal China Exporter
  310S Hexmesh Strips 310S Hexmesh Curragted Strips
310S Hexagonal Mesh HESLY Hexsteel
HESLY Hexsteel Metal HESLY Hexmetal China
310S Hexmetal China 310S Hexmesh China
Hex Mesh for cyclone Hex Mesh for cyclone
China Hexsteel Factory Welded Hexmesh
Welded Hexmesh Welded Hexmesh
