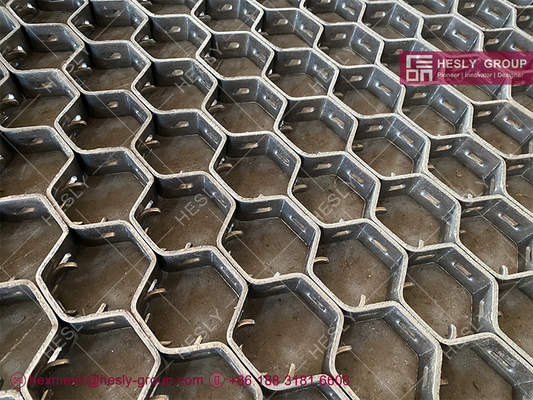

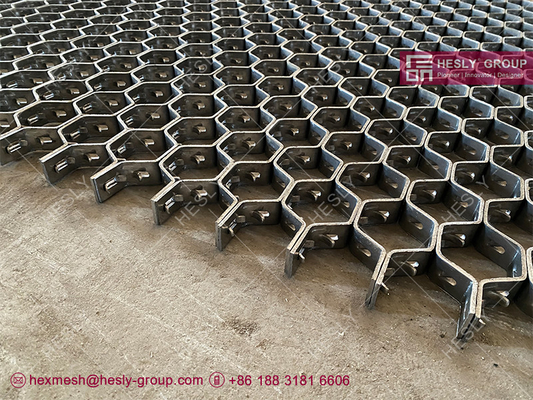

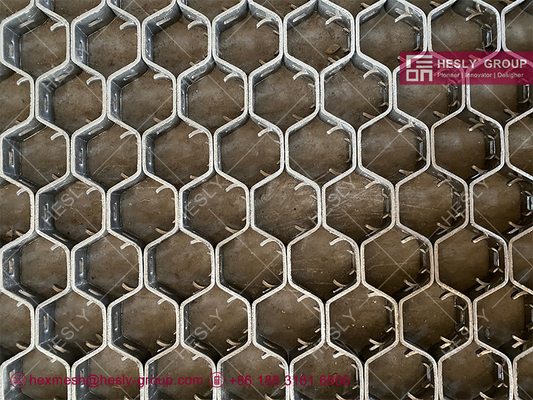

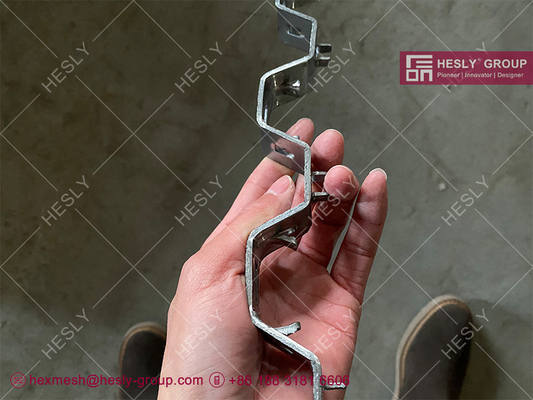

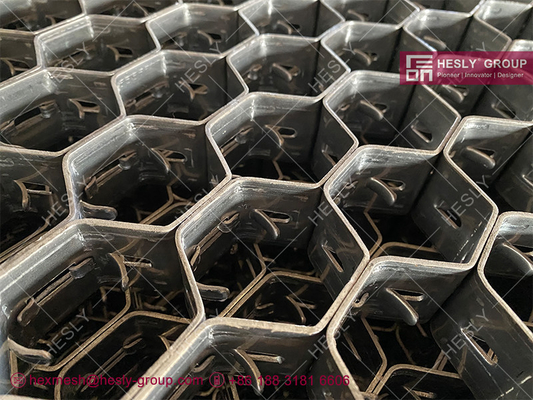

Hexsteel Mesh in FCC Reactor Wall, SS304H, 19mm height, 16gauge thickness, Lances type, 1.5mX3.0m, HESLY China factory

China Hexsteel Mesh in FCC Reactor Wall, SS304H, 19mm height, 16gauge thickness, Lances type, 1.5mX3.0m, HESLY China factory supplier
Hexsteel Mesh in FCC Reactor Wall, SS304H, 19mm height, 16gauge thickness, Lances type, 1.5mX3.0m, HESLY China factory supplier Hexsteel Mesh in FCC Reactor Wall, SS304H, 19mm height, 16gauge thickness, Lances type, 1.5mX3.0m, HESLY China factory supplier Hexsteel Mesh in FCC Reactor Wall, SS304H, 19mm height, 16gauge thickness, Lances type, 1.5mX3.0m, HESLY China factory supplier Hexsteel Mesh in FCC Reactor Wall, SS304H, 19mm height, 16gauge thickness, Lances type, 1.5mX3.0m, HESLY China factory supplier Hexsteel Mesh in FCC Reactor Wall, SS304H, 19mm height, 16gauge thickness, Lances type, 1.5mX3.0m, HESLY China factory supplier

Large Image :  Hexsteel Mesh in FCC Reactor Wall, SS304H, 19mm height, 16gauge thickness, Lances type, 1.5mX3.0m, HESLY China factory

Product Details:

Place of Origin: Hesly Metal Mesh, CHINA
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: HEX1519304H

Payment & Shipping Terms:

Minimum Order Quantity: 50 ㎡
Price: US$15.00-US$300.00
Packaging Details: Pallet
Delivery Time: 15days/20'GP
Payment Terms: TT/LC
Supply Ability: 500㎡/day
Detailed Product Description
Material: 304H Thickness: 16G
Hole: 2" Height: 19mm
Package: Steel Pallet

Hexsteel Mesh in FCC Reactor Wall, SS304H, 19mm height, 16gauge thickness, Lances type, 1.5mX3.0m, HESLY China factory

Anchoring & Reinforcement for Refractories and Concrete Flooring --- HESLY Hexmesh

Hex Mesh (Hexmetal) is a unique honeycombed steel designed to provide excellent retention and reinforcement of thin wall refractories. It fully complements dense hydraulic and chemically bonded refractories in resisting erosion. Superior retention for erosion resistant refractories.



HESLY Hexsteel China Factory HESLY Hexsteel China Factory
Hex-Mesh: Bonding Hole Type Hex mesh: Pronges Type
flexible mesh for refractory lining flexible mesh lances China Supplier
Flexible Mesh Flexible Mesh Lances



Application of HESLY hex mesh grid:

  1. As refractories, hexsteel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
  2. Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
  3. Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.
  4. Application Areas: Duct Linings, Cyclones, Dryers, Cat Crackers, Reactors, Tanks Stacks, Fan housing, Loading docks And other areas where monolithic linings are used.

Material Typical Service Temperature

Anchorage Material Chemical Composition

Typical Service

Temperature

AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 750℃
CARBON STEEL VARIOUS 550℃



Common Specification Sheet

ITEM SPECS B A AF
1 1.2 X 10 X 50mm 1.2mm 10mm 40mm
2 1.2 X 15 X 50mm 1.2mm 15mm 50mm
3 1.2 X 20 X 50mm 1.2mm 20mm 50mm
4 1.5 X 10 X 50mm 1.5mm 10mm 50mm
5 1.5 X 15 X 50mm 1.5mm 15mm 50mm
6 1.5 X 20 X 50mm 1.5mm 20mm 50mm
7 1.8 X 15 X 50mm 1.8mm 15mm 50mm
8 1.8 X 20 X 50mm 1.8mm 20mm 50mm
9 1.8 X 25 X 50mm 1.8mm 25mm 50mm
10 2.0 X 15 X 50mm 2.0mm 15mm 50mm
11 2.0 X 20 X 50mm 2.0mm 20mm 50mm
12 2.0 X 25 X 50mm 2.0mm 25mm 50mm
13 2.0 X 30 X 50mm 2.0mm 30mm 50mm
14 2.0 X 30 X 80mm 2.0mm 30mm 80mm
Remark A/F Min: 40mm Max: 100mm
  MATERIAL A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S



Photo Gallery - HEXSTEEL

Photo Gallery - HESLY Hexagonal Mesh
310S Refractory Hexsteel Holder 310S Hexsteel Holder
304 Hexmetal Holder 310S Hexmetal
60mm depth hexsteel mesh Refractory Hexsteel HESLY
Hex Steel With Pronges Hexsteel with Bonding Holes
310S Hexmetal Refractory Holder 304 Hexmetal refractory holder
Hexmetal China Factory Hexmetal HESLY Supplier



Package and Delivery

HESLY Hexmetal China Hexmetal
China Hexmetal Factory HESLY China Hexmetal Manufacturer



HESLY Refractory Hex Metal Mesh
