Din1.4401 hex steel grid with 30mm standard height, 40mm hole | standard size 965mmx1000mm
-
-
Large Image :
Din1.4401 hex steel grid with 30mm standard height, 40mm hole | standard size 965mmx1000mm
|
Product Details:
| Place of Origin: |
E-on Hexsteel, Anping, China |
| Brand Name: |
HESLY |
| Certification: |
ISO9001：2008 |
| Model Number: |
HS-2.0/30/40 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1㎡ |
| Price: |
Negotiated according to the order |
| Packaging Details: |
Pallet |
| Delivery Time: |
according to the order (hexmetal in stock) |
| Payment Terms: |
TT/LC |
| Supply Ability: |
800㎡/day |
|
Detailed Product Description
| Material: |
Ss316 Alloys, Din1.4401 |
Gauge: |
14Ga(2.0mm) |
| Height: |
30mm |
Standard Size: |
965mmx1000mm |
Din1.4401 hex steel grid, Din1.4401 hexmetal, Refractory Lining 1.4401 hexmesh
Hex mesh Refractory Lining is also known as hex metal, hex metal grating, hex steel mesh, Hex steel grill or hex steel grid. Metal Hex grid provides surface framework for reinforcement of the refractory or concrete material in linings. They are made of pressed strips riveted to each other to form the hexagonal apertures.
Hex metal refractory lining is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. The hex steel mesh acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of hex metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.
Advantages of E-ON (HESLY)
| E-ON's competitive Advantages |
Much of our success at HESLY group, can be attributed to outstanding service, competitive pricing anda "deliver what we are going to or earlier" attitude. We often shiporders same day and are on call 24 hours a day, 7 day a week. www.hexsteel.net
|
HESLY hexsteel Typical Service Temperature:
|
Anchorage Material
|
Chemical Composition
|
Typical Service
Temperature
|
|
AISI
|
DIN
|
C%
|
Si%
|
Mn%
|
P%
|
S%
|
Cr%
|
Ni%
|
others
|
|
304
|
1.4301
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.45
|
≤0.30
|
18.0—20.0
|
8.0—10.0
|
N
|
800℃
|
|
316
|
1.4401/1.4436
|
≤0.08
|
≤0.75
|
≤2.00
|
≤0.45
|
≤0.30
|
16.0—18.0
|
10.0—14.0
|
N:Mo
|
800℃
|
|
321
|
1.4541
|
≤0.08
|
≤0.75
|
≤2.00
|
≤0.45
|
≤0.30
|
17.0—19.0
|
9.0—12.0
|
Ti
|
800℃
|
|
310S
|
1.4845
|
≤0.08
|
≤1.50
|
≤2.00
|
≤0.45
|
≤0.30
|
24.0—26.0
|
19.0—22.0
|
—
|
1150℃
|
|
Inconel 601
|
2.4851
|
≤0.10
|
≤0.50
|
≤1.00
|
—
|
≤0.15
|
21.0—25.0
|
58.0—63.0
|
Al:Cu
|
1200℃
|
|
Inconel 800
|
1.4876
|
≤0.10
|
≤1.00
|
≤1.50
|
≤0.45
|
≤0.15
|
19.0—23.0
|
30.0—35.0
|
Al:Ti
|
1200℃
|
|
410S
|
1.4001
|
≤0.08
|
≤1.00
|
≤1.00
|
≤0.40
|
≤0.30
|
11.5—13.5
|
≤0.60
|
—
|
750℃
|
|
CARBON STEEL
|
VARIOUS
|
550℃
|
HESLY-hexsteel ordinary specs:
|
HESLY-hexsteel ordinary specifications (E-ON refractory)
|
|
ITEM
|
SPECS
|
B
|
A
|
AF
|
|
1
|
1.2 X 10 X 50mm
|
1.2mm
|
10mm
|
40mm
|
|
2
|
1.2 X 15 X 50mm
|
1.2mm
|
15mm
|
50mm
|
|
3
|
1.2 X 20 X 50mm
|
1.2mm
|
20mm
|
50mm
|
|
4
|
1.5 X 10 X 50mm
|
1.5mm
|
10mm
|
50mm
|
|
5
|
1.5 X 15 X 50mm
|
1.5mm
|
15mm
|
50mm
|
|
6
|
1.5 X 20 X 50mm
|
1.5mm
|
20mm
|
50mm
|
|
7
|
1.8 X 15 X 50mm
|
1.8mm
|
15mm
|
50mm
|
|
8
|
1.8 X 20 X 50mm
|
1.8mm
|
20mm
|
50mm
|
|
9
|
1.8 X 25 X 50mm
|
1.8mm
|
25mm
|
50mm
|
|
10
|
2.0 X 15 X 50mm
|
2.0mm
|
15mm
|
50mm
|
|
11
|
2.0 X 20 X 50mm
|
2.0mm
|
20mm
|
50mm
|
|
12
|
2.0 X 25 X 50mm
|
2.0mm
|
25mm
|
50mm
|
|
13
|
2.0 X 30 X 50mm
|
2.0mm
|
30mm
|
50mm
|
|
14
|
2.0 X 30 X 80mm
|
2.0mm
|
30mm
|
80mm
|
|
Remark
|
A/F
|
Min: 40mm Max: 100mm
|
| |
MATERIAL
|
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S
|

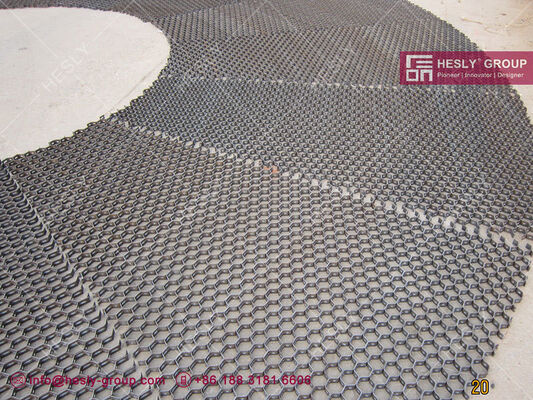

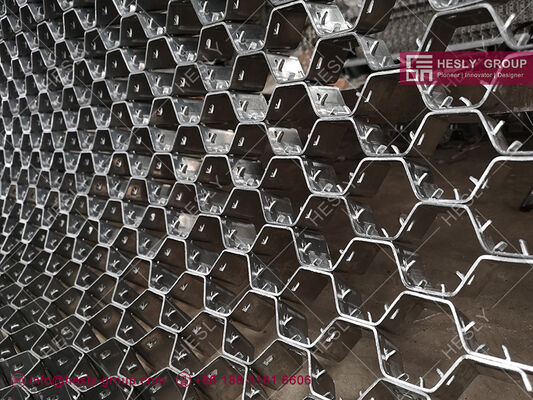

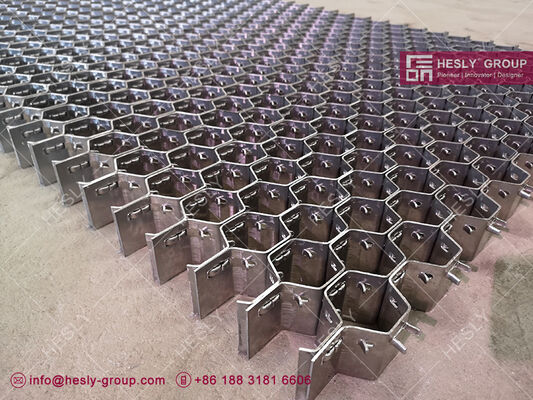

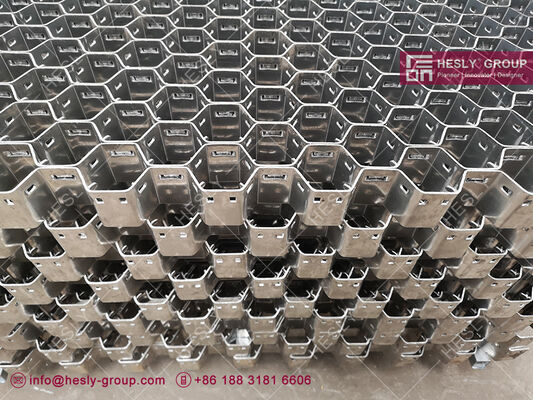

Reference Photos
