Flex Mesh for Cyclones of the FCC units in Oil refinery | 2.0X25mm | 37mm hole | 1mX1m | Hesly Metal Mesh China

China Flex Mesh for Cyclones of the FCC units in Oil refinery | 2.0X25mm | 37mm hole | 1mX1m | Hesly Metal Mesh China supplier
Flex Mesh for Cyclones of the FCC units in Oil refinery | 2.0X25mm | 37mm hole | 1mX1m | Hesly Metal Mesh China supplier Flex Mesh for Cyclones of the FCC units in Oil refinery | 2.0X25mm | 37mm hole | 1mX1m | Hesly Metal Mesh China supplier Flex Mesh for Cyclones of the FCC units in Oil refinery | 2.0X25mm | 37mm hole | 1mX1m | Hesly Metal Mesh China supplier Flex Mesh for Cyclones of the FCC units in Oil refinery | 2.0X25mm | 37mm hole | 1mX1m | Hesly Metal Mesh China supplier Flex Mesh for Cyclones of the FCC units in Oil refinery | 2.0X25mm | 37mm hole | 1mX1m | Hesly Metal Mesh China supplier

Large Image :  Flex Mesh for Cyclones of the FCC units in Oil refinery | 2.0X25mm | 37mm hole | 1mX1m | Hesly Metal Mesh China

Product Details:

Place of Origin: Hesly Metal Mesh, CHINA
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: HS-2.0/20/50

Payment & Shipping Terms:

Minimum Order Quantity: 50 SQM
Price: negotiated as per the order
Packaging Details: Pallet
Delivery Time: 15days
Payment Terms: TT/LC
Supply Ability: 500㎡/day
Detailed Product Description
Material: Carbon Steel / Stainless Steel Strips: 25X1.8mm
Hole: 37mm

Flex Mesh for Cyclones of the FCC units in Oil refinery | 2.0X25mm | 37mm hole | 1mX1m | Hesly Metal Mesh China

HESLY hex metal, hex mesh & hexsteel, your best choice for  Anchoring & Reinforcement for Refractories and Concrete Flooring !!!

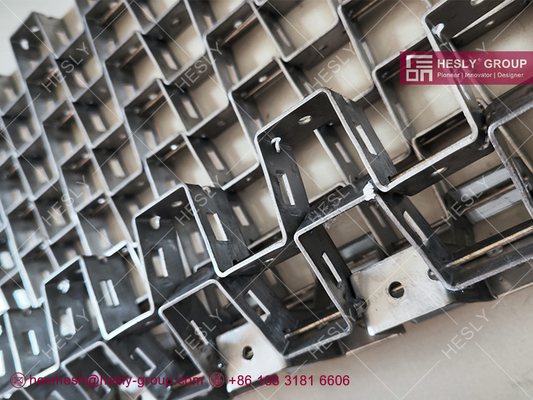

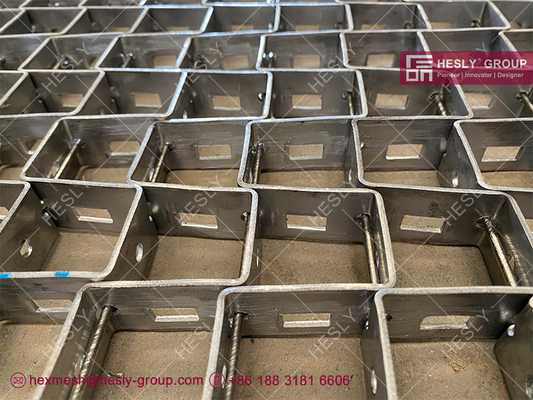

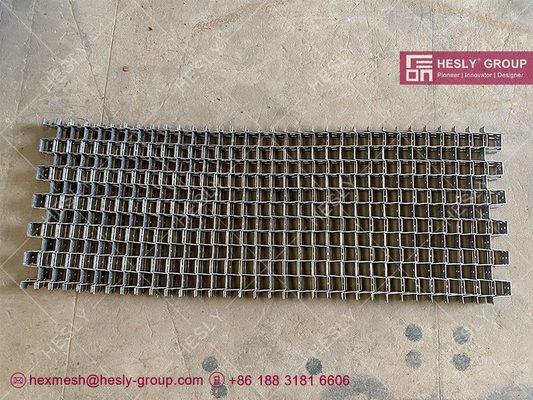

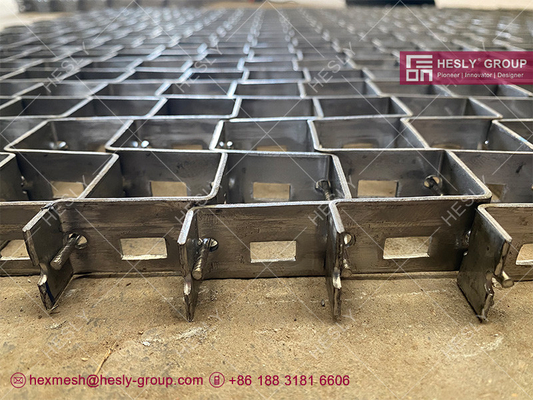

Flex Metal with lances

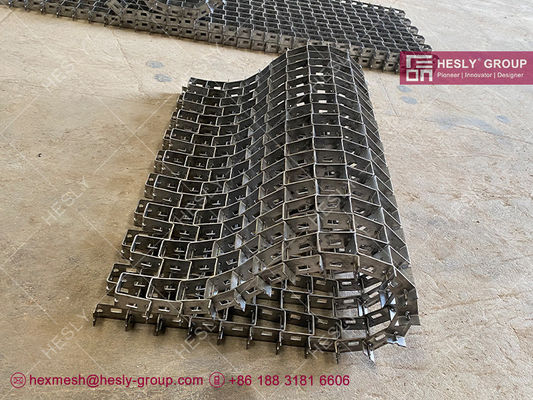

Flex metal refractory lining is the direct counterpart of hex metal, it performs all the same functions of reinforcement of thin wall refractory linings, while its design allows free form rolling to very small diameters. Hex metal becomes impractical to use when the section of plant being protected is of small diameter, the free rolling capabilities of flex metal allows plant as small as 150mm to lined. Typical applications include air distributors, cyclone diplegs, fan cases and all plants where the practicality of free rolling material is beneficial to maintenance activities
flexible mesh Refractory lining flexible mesh with lances HESLY
Standard Flexible Mesh Flexible Mesh With Lances



Flexible Mesh Application

Refractory Linings in Furnaces | Ducts and Flue Gas Lines | Cyclones | Reactors | Reactor Vessels | Windboxes | Fan Casings | Regenerators | Tanks | Ashpits | Heaters
Air Distributors | All Plants where the Practicality of Free Rolling Material is Beneficial to Maintenance Activities | Power Plants Cement Plants | Steel Plants | Petroleum Sector | Chemical Industry

Raw Material Typical Service Temperature

Anchorage Material

Chemical Composition

Typical Service

Temperature

AISI

DIN

C%

Si%

Mn%

P%

S%

Cr%

Ni%

others

304

1.4301

≤0.08

≤1.00

≤2.00

≤0.45

≤0.30

18.0—20.0

8.0—10.0

N

800℃

316

1.4401/1.4436

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

16.0—18.0

10.0—14.0

N:Mo

800℃

321

1.4541

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

17.0—19.0

9.0—12.0

Ti

800℃

310S

1.4845

≤0.08

≤1.50

≤2.00

≤0.45

≤0.30

24.0—26.0

19.0—22.0

1150℃

Inconel 601

2.4851

≤0.10

≤0.50

≤1.00

≤0.15

21.0—25.0

58.0—63.0

Al:Cu

1200℃

Inconel 800

1.4876

≤0.10

≤1.00

≤1.50

≤0.45

≤0.15

19.0—23.0

30.0—35.0

Al:Ti

1200℃

410S

1.4001

≤0.08

≤1.00

≤1.00

≤0.40

≤0.30

11.5—13.5

≤0.60

750℃

CARBON STEEL

VARIOUS

550℃

Features of Stainless Steel

SS

Features

304

Good heat resistance ,corrosion resistance ,strength at low temperature and mechanical

properties, good hot working performance  for example punching,bending,etc , no heat

treatment influence phenomenon(nonmagnetic,U-96°C-800°C).

304L

As one kind of low carbon SS304,In the general, the similar corrosion resistance with

SS 304 .But after welding or in eliminating stress, the outstanding ability of the resistance

to corrosion of grain boundaries In under the condition of no-heat treatment, maintain

good corrosion resistance,Used in -196°C~800°C.

316

Owing to add to Mo,So the corrosion resistance of atmospheric and high temperature

strength are very good,Can be used in harsh conditions ,Processing sclerosing optimal

(nonmagnetic).

316L

As one kind of low carbon series SSS316, in addition to the same feature of  SS316,

Optimal resistance to corrosion of grain boundaries

310S

As heat-resistant part in the under the temperature 1100°C,Oxidation stability  steel ,etc

Common Specification Sheet

HESLY Flexible Metal Mesh
Model Strips Rod Width Length Weight
Depth Thickness
HFM2520 25mm 1” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM2515 25mm 1” 1.5mm 17 GA 3.0mm 1.0m 1.5m
HFM1920 19mm 3/4” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM1915 19mm 3/4” 1.5mm 17 GA 3.0mm 1.0m 1.5m
HFM1620 16mm 5/8” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM1615 16mm 5/8” 1.5mm 17 GA 3.0mm 1.0m 1.5m
HFM1420 14mm 9/16” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM1415 14mm 9/16” 1.5mm 17 GA 3.0mm 1.0m 1.5m

HESLY Flex Mesh


flexible mesh for refractory lininng refractory flex metal China Exporter
  Flex Metal Chinese Supplier   Flexible Mesh HESLY China
Flexible Mesh China Supplier HESLY Flexible Metal
410S Hexmesh 410S Hexmetal
hexagonal mesh China HESLY Hexmesh Refractory Lining
Double Clinch Hexmesh China Hexmetal



Package and Delivery

HESLY Hexmetal flexible hexagonal mesh for refractory lining
HESLY Hexmetal China Hexmesh
