SS410S Hexagonal Mesh for Refractory Lining | 1" thickness | lance Tabs | 2" hexagonal hole | HESLY Factory

$China SS410S Hexagonal Mesh for Refractory Lining | 1" thickness | lance Tabs | 2" hexagonal hole | HESLY Factory supplier$

$SS410S Hexagonal Mesh for Refractory Lining | 1" thickness | lance Tabs | 2" hexagonal hole | HESLY Factory supplier$

Large Image : SS410S Hexagonal Mesh for Refractory Lining | 1" thickness | lance Tabs | 2" hexagonal hole | HESLY Factory

Product Details:

Place of Origin:	HESLY METAL MESH, China
Brand Name:	HESLY
Certification:	ISO9001：2008
Model Number:	HEX250410

Payment & Shipping Terms:

Minimum Order Quantity:	50 ㎡
Price:	US$15.00-US$80.00
Packaging Details:	Pallet
Delivery Time:	15days/20'GP
Payment Terms:	T/T, L/C
Supply Ability:	800㎡/day

Contact Now

Detailed Product Description

Thickness:	1.5mm	Depth:	15mm
Opening:	52mm	Size:	1000x1000mm
Technique:	Perforated

SS410S Hexagonal Mesh for Refractory Lining | 1" thickness | lance Tabs | 2" hexagonal hole | HESLY Factory

Hex mesh refractory lining, or refractory furnace lining, is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position.

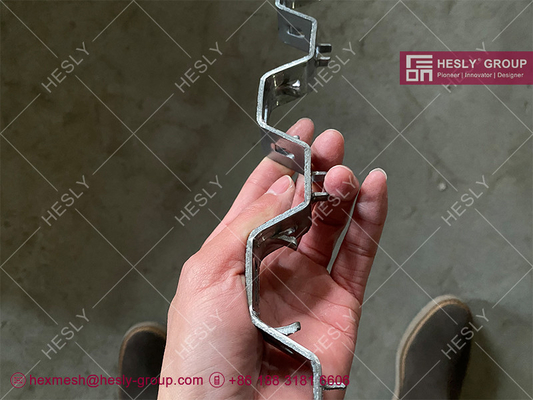

Since hex mesh’s flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape.

Whether you need standard size panels, custom-shapes or rolled products, Antec has the equipment, expertise and experience to meet your needs quickly and cost-effectively.

Hexsteel: Bonding Hole Type

Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

Hex-metal: Pronges/Lances Type

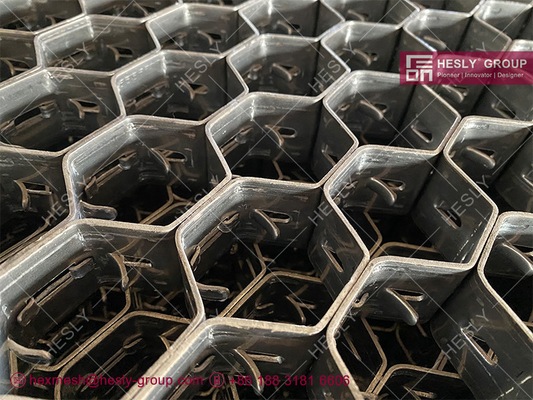

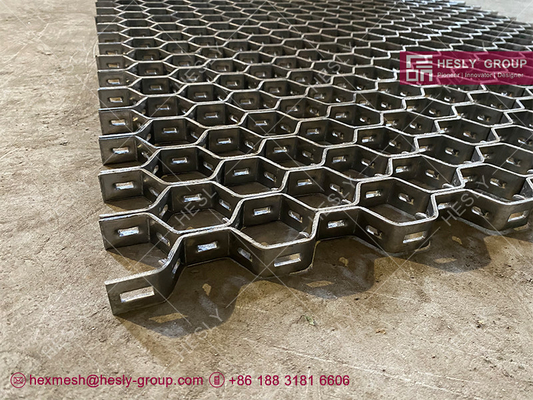

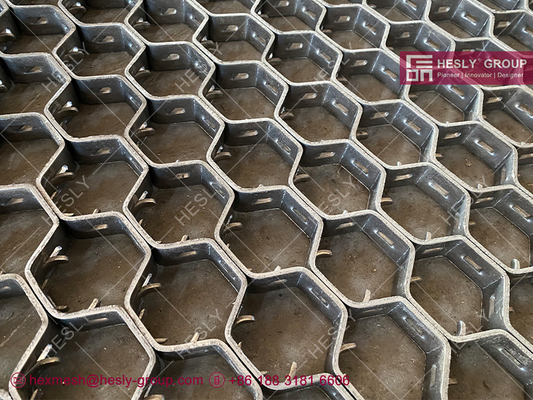

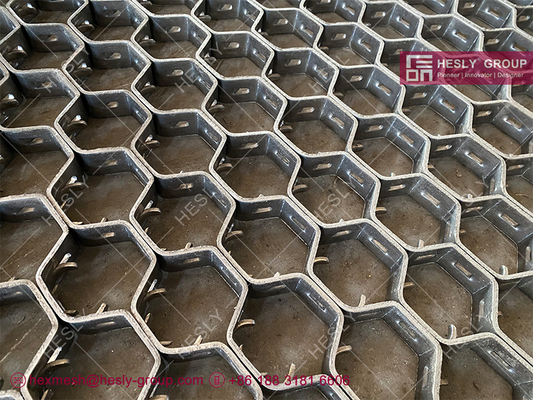

this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.

Applications

Hex mesh is flexible and easily conforms to circular shapes, which allows it to be rolled. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.

Hex steel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.

Raw Material Typical Service Temperature

Anchorage Material		Chemical Composition								Typical Service Temperature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Typical Service Temperature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL		VARIOUS								550℃

Common Specification Sheet

ITEM	SPECS		B	A	AF
1	1.2 X 10 X 50mm		1.2mm	10mm	40mm
2	1.2 X 15 X 50mm		1.2mm	15mm	50mm
3	1.2 X 20 X 50mm		1.2mm	20mm	50mm
4	1.5 X 10 X 50mm		1.5mm	10mm	50mm
5	1.5 X 15 X 50mm		1.5mm	15mm	50mm
6	1.5 X 20 X 50mm		1.5mm	20mm	50mm
7	1.8 X 15 X 50mm		1.8mm	15mm	50mm
8	1.8 X 20 X 50mm		1.8mm	20mm	50mm
9	1.8 X 25 X 50mm		1.8mm	25mm	50mm
10	2.0 X 15 X 50mm		2.0mm	15mm	50mm
11	2.0 X 20 X 50mm		2.0mm	20mm	50mm
12	2.0 X 25 X 50mm		2.0mm	25mm	50mm
13	2.0 X 30 X 50mm		2.0mm	30mm	50mm
14	2.0 X 30 X 80mm		2.0mm	30mm	80mm
Remark	A/F	Min: 40mm Max: 100mm
	MATERIAL	A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS309S,SS310S

Hexmetal Gallery

**Photo Gallery - HESLY Hexsteel Mesh**
	$Hex Mesh refractory linings China HESLY Factory supplier$
410S Hexmesh Cat Cracker Lining	410S Hexmesh China Factory

304 Hexmetal	310S Hexmetal
$Hexmetal Mesh Refractory Lining$	$Refractory Hexsteel Lining$
Hexsteel Refractory Linings	Hex Steel Mesh China Factory

Package and Delivery


China Hexmesh Factory	China Hexmetal Exporter

$HESLY Refractory Hex Metal Mesh$
