410S Refractory Hexagonal Mesh | 25mm deep | 12 ga thickness strip | 2" hex hole | 1X2m | HESLY China exporter

China 410S Refractory Hexagonal Mesh | 25mm deep | 12 ga thickness strip | 2" hex hole | 1X2m | HESLY China exporter supplier
410S Refractory Hexagonal Mesh | 25mm deep | 12 ga thickness strip | 2" hex hole | 1X2m | HESLY China exporter supplier 410S Refractory Hexagonal Mesh | 25mm deep | 12 ga thickness strip | 2" hex hole | 1X2m | HESLY China exporter supplier 410S Refractory Hexagonal Mesh | 25mm deep | 12 ga thickness strip | 2" hex hole | 1X2m | HESLY China exporter supplier 410S Refractory Hexagonal Mesh | 25mm deep | 12 ga thickness strip | 2" hex hole | 1X2m | HESLY China exporter supplier 410S Refractory Hexagonal Mesh | 25mm deep | 12 ga thickness strip | 2" hex hole | 1X2m | HESLY China exporter supplier

Large Image :  410S Refractory Hexagonal Mesh | 25mm deep | 12 ga thickness strip | 2" hex hole | 1X2m | HESLY China exporter

Product Details:

Place of Origin: Hesly Metal Mesh, CHINA
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: HEX325410

Payment & Shipping Terms:

Minimum Order Quantity: 50 ㎡
Price: Negotiated according to the order
Packaging Details: Pallet
Delivery Time: according to the order (in stock)
Payment Terms: T/T, L/C at sight, D/P, Western Union
Supply Ability: 800㎡/day
Detailed Product Description
Material: 410S Technical: Perforating & Riveting
Gauge: 12#, 14#, 16# Etc. Thickness: 3/4", 1", 2" Etc
Standard Panel Size: 1000x2000mm Package: Steel Pallet

410S Refractory Hexagonal Mesh | 25mm deep | 12 ga thickness strip | 2" hex hole | 1X2m | HESLY China exporter

Hexagonal Mesh / Hexmesh is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining’s upper crust, which prevents spalling and cracking. As a result of hex metal’s strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.

High Quality Hexmesh China Factory

Applications of Hex Metal

Since hex metal’s flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape.

FOR REFRACTORIES
The flexibility, high strength and erosion resistant characteristics of Hexmesh make it an excellent choice for refractory linings in furnaces, reactors, cyclones, ducts and flues.
FOR FLOORS
Hexmesh provides long term protection for armor applications inside industrial floors. Specifically, loading docks, ramps, high traffic aisles for forklifts and trucks. Hot floors for foundries, forge shops and steel mills. Refuse and recycle disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads. All will benefit with Hexmesh

Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.

316 stainless steel hexmetal with bonding hole Stainless Steel Hexmetal with lance China Supplier
Standard Bonding Hole Pattern Lance Pattern

Typical Service Temperature

Anchorage Material

Chemical Composition

Typical Service

Temperature

AISI

DIN

C%

Si%

Mn%

P%

S%

Cr%

Ni%

others

304

1.4301

≤0.08

≤1.00

≤2.00

≤0.45

≤0.30

18.0—20.0

8.0—10.0

N

800℃

316

1.4401/1.4436

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

16.0—18.0

10.0—14.0

N:Mo

800℃

321

1.4541

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

17.0—19.0

9.0—12.0

Ti

800℃

310S

1.4845

≤0.08

≤1.50

≤2.00

≤0.45

≤0.30

24.0—26.0

19.0—22.0

1150℃

Inconel 601

2.4851

≤0.10

≤0.50

≤1.00

≤0.15

21.0—25.0

58.0—63.0

Al:Cu

1200℃

Inconel 800

1.4876

≤0.10

≤1.00

≤1.50

≤0.45

≤0.15

19.0—23.0

30.0—35.0

Al:Ti

1200℃

410S

1.4001

≤0.08

≤1.00

≤1.00

≤0.40

≤0.30

11.5—13.5

≤0.60

750℃

CARBON STEEL

VARIOUS

550℃

Common Specification Sheet

HESLY Hexmesh ordinary specifications

ITEM

SPECS

B

A

AF

1

1.2 X 10 X 50mm

1.2mm

10mm

40mm

2

1.2 X 15 X 50mm

1.2mm

15mm

50mm

3

1.2 X 20 X 50mm

1.2mm

20mm

50mm

4

1.5 X 10 X 50mm

1.5mm

10mm

50mm

5

1.5 X 15 X 50mm

1.5mm

15mm

50mm

6

1.5 X 20 X 50mm

1.5mm

20mm

50mm

7

1.8 X 15 X 50mm

1.8mm

15mm

50mm

8

1.8 X 20 X 50mm

1.8mm

20mm

50mm

9

1.8 X 25 X 50mm

1.8mm

25mm

50mm

10

2.0 X 15 X 50mm

2.0mm

15mm

50mm

11

2.0 X 20 X 50mm

2.0mm

20mm

50mm

12

2.0 X 25 X 50mm

2.0mm

25mm

50mm

13

2.0 X 30 X 50mm

2.0mm

30mm

50mm

14

2.0 X 30 X 80mm

2.0mm

30mm

80mm

Remark

A/F

Min: 40mm   Max: 100mm



MATERIAL

A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti, 310S, 410S

HexMesh Photo Showcase

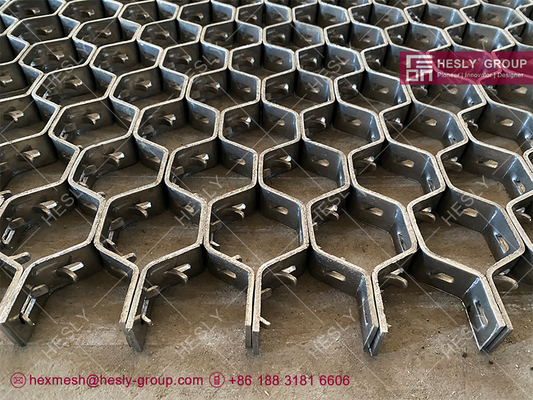

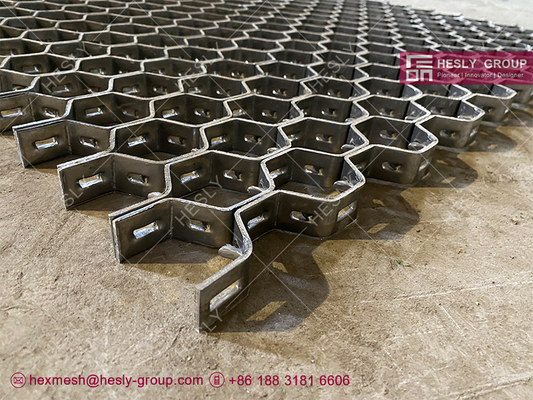

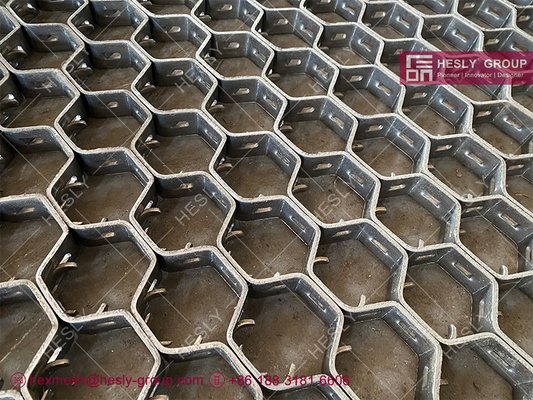

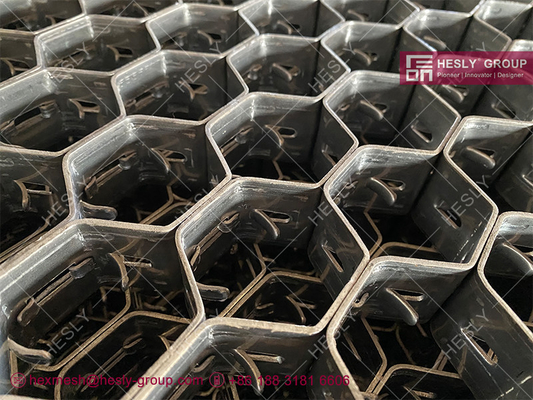

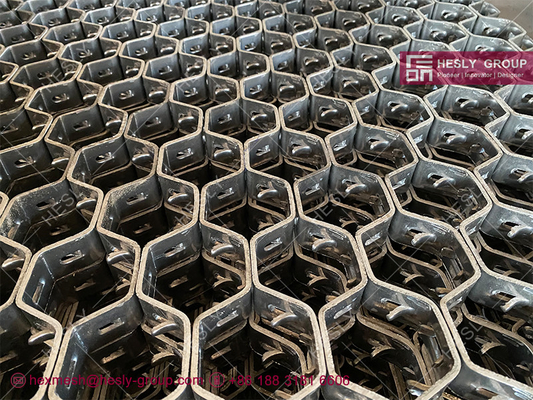

410S Hex Mesh China supplier 310S Hexmetal refractory lining
1" hexmesh strips 50mm hex Mesh
Hexmetal China HESLY Hexmesh
410S Hexsteel China Hexmesh Factory Sales
HESLY Hexmetal HESLY Hexmetal
310S Hexmetal HESLY Hexmetal
