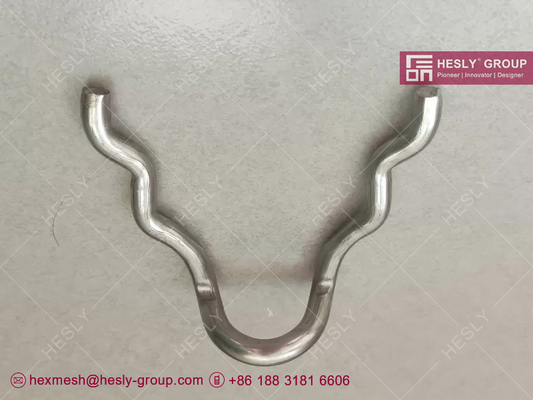

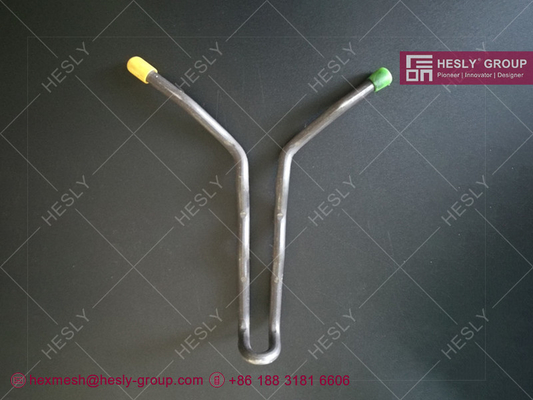

V anchor | Stainless steel TP 310 | 3/16" DIA | both ends with 45° angle | Length A= 4" | Hesly Metal Mesh - China

China V anchor | Stainless steel TP 310 | 3/16" DIA |  both ends with 45° angle | Length A= 4" | Hesly Metal Mesh - China supplier
V anchor | Stainless steel TP 310 | 3/16" DIA |  both ends with 45° angle | Length A= 4" | Hesly Metal Mesh - China supplier V anchor | Stainless steel TP 310 | 3/16" DIA |  both ends with 45° angle | Length A= 4" | Hesly Metal Mesh - China supplier V anchor | Stainless steel TP 310 | 3/16" DIA |  both ends with 45° angle | Length A= 4" | Hesly Metal Mesh - China supplier V anchor | Stainless steel TP 310 | 3/16" DIA |  both ends with 45° angle | Length A= 4" | Hesly Metal Mesh - China supplier V anchor | Stainless steel TP 310 | 3/16" DIA |  both ends with 45° angle | Length A= 4" | Hesly Metal Mesh - China supplier

Large Image :  V anchor | Stainless steel TP 310 | 3/16" DIA | both ends with 45° angle | Length A= 4" | Hesly Metal Mesh - China

Product Details:

Place of Origin: China
Brand Name: HESLY
Certification: ISO9001
Model Number: V anchor

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Packaging Details: in box
Payment Terms: TT
Supply Ability: 10000pcs per day
Detailed Product Description
Material: ASTM310 Length A: 4"
Package: In Paper Box DIA: 3/16"

3/16" DIA | Stainless Steel V anchor TP310 | Both end with 45° angle| A=4" | Hesly Metal Mesh-China

Besides of Hexmesh, Hesly metal also make and supply Armour-Anchors which can be used in combination with Hexmesh / Flexmetals or as stand alone systems. HESLY's anchors types are below:

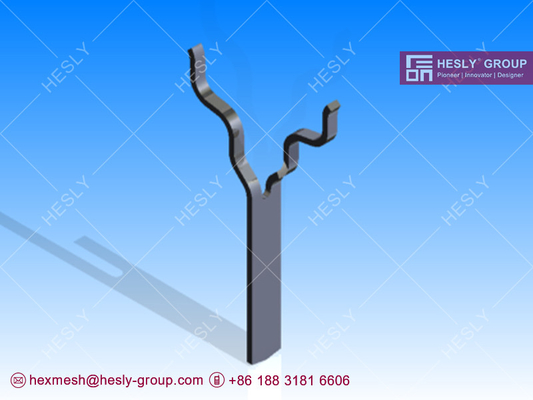

Plate formed anchorPlate Formed Anchors

Plate Formed Anchors are divided into Metallic Anchors and Ceramic Supports. The Metallic Anchors are designed typically for ceramic fiber and for light or medium weight refractories, again configured to provide maximum retention during plant service. The Ceramic Anchor Supports "C" Clips are designed to retain most standard pattern ceramic anchors (Scissor Clip types are available as wire formed) Mainly for light and medium weight duties, their typically small cross section provides low heat transfer with section size providing easy manual or semi-automatic welding. "C" Clips retain ceramic anchors used for anchoring moldable refractories.

steel rod anchorsSteel Rod Formed Anchors / Studs

Rod Formed Anchors / Studs (larger than 3/8" diameter) Heavy weight anchors are used only in the most arduous conditions. They are designed to provide support and attachment of refractory pre-cast sections to plant steelwork, and provide an effective anchoring system in high stress situations. Their design shape minimizes and controls heat transfer and thus provides maximum strength at elevated temperatures. Refractory lining situations that have attendant high live loads occur in plant such as Rotary Kilns, where deep roof and side wall lining of dense refractories require maximum support during operating conditions or heavy weight pre-cast blocks are retained by bolt through, weld on and slip on systems.

refractory anchorsWire Formed Anchors

Wire Formed Anchors are configured to suit all light, medium and dense refractories in providing maximum support during refractory application and maximum retention of refractories during plant service. Consideration is given to expansion, heat transfer, method of application, environmental conditions and design of host unit for individual applications. Standard designs are defined in our data sheet catalogue. Anchors are designed for Manual and Semi-Automatic Welding.

The range of applications is limited only by the structural strength of the anchor section. The maximum section size of wire formed anchors is 3/8" (9.5mm). Typical applications include most process plant including furnaces, ductwork, heaters or reactors.



Standard Hexmesh

HESLY Hexsteel China Factory HESLY Hexsteel China Factory

Hexsteel: Bonding Hole Type

Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

Hex-metal: Prongs/Lances Type

this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.





Anchor types include :

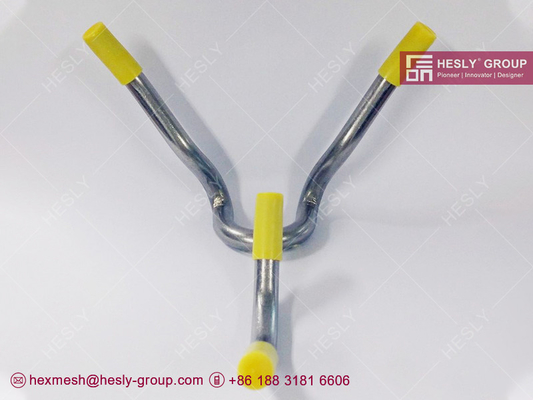

  •  Y & V Anchors
  • Welded & Twisted Anchors
  • Split TYpe, Stud Welded anchors

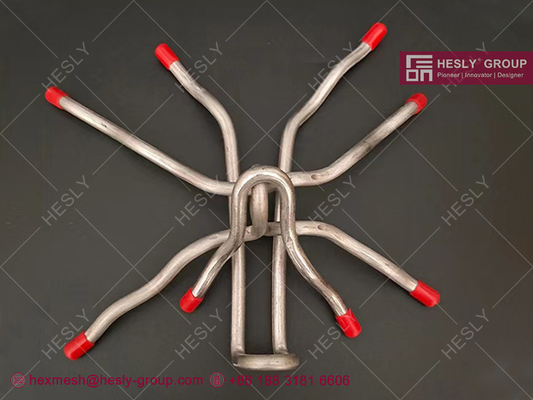

  • Christmas Tree and Strap Anchors
  • Ceramic Anchor Brick Clips
  • S type anchors

Raw Material Typical Service Temperature

Alloys behave differently in different environments and temperatures. Therefore the choice of material is cirtical for the refractory anchors. HESLY's experience and assist with determining the most appropriate materials for each individual application.

Anchorage Material Chemical Composition

Typical Service

Temperature

AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 750℃
CARBON STEEL VARIOUS 550℃
