S-Bars Hex Mesh anchors | Type S Hexalt Anchor | 2.0mm thickness| ss316 | Punch Tabs for Cyclones FCCU
Detailed Product Description
| Material: |
SS316 |
Thickness: |
2.0mm |
| Type: |
Flex Tabs, Corner Tabs, And Custom Made Shapes |
S-Bars Hex Mesh anchors | Type S Hexalt Anchor | 2.0mm thickness | ss316 | Punch Tabs for Cyclones FCCU

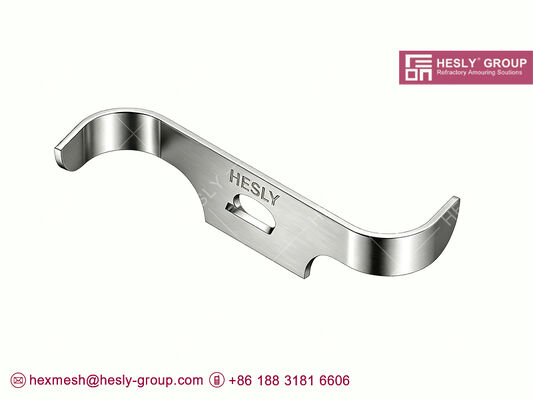

‘S’ bars Refractory Anchor/S-shaped Anchors
These are S-shaped Refractory Anchors used for armouring and containment of anti-abrasive and anti-corrosive refractory linings. This is a specific application for the repair of concrete linings in areas where it is necessary to remove and/or repair damaged hexagonal mesh;Refractory Anchors (S-bars) are indispensable for ensuring a quick and effective repair. They are made from plates of any thickness and can be made in any shape requested by the client. The main materials used for the production of Refractory Anchor (S-bar) are AISI 304H, 410S, 310S and carbon steel.
HESLY Refractory Anchors / Studs / Tabs Group
A range of steel formed fasteners to support and retain a full range of refractory types. Manufactured in a choice of materials and sizes to suit operational atmospheres and temperatures to be encountered during service life.
We have divided the supply of refractory anchors into 6 main groups:
- Wire Anchors – Anchors manufactured in material diameters up to 10mm Ø
- Plate and Sheet Anchors – Anchors manufactured from flat materials from 2-10mm thickness.
- Rod Anchors – Anchors manufactured in material diameters in excess of 10mm.
- Brick Hangers and Ties – Brick Hangers to support ceramic anchor bricks. Brick ties for the retention of insulating/medium weight bricks.
- Plates and Studs – Typically for the use of suspending Hexmetal to provide a dual layer lining consisting of an insulator back up and erosion resistant hot face.
Material Selection of HESLY Hex mesh anchors:
Alloys behave differently in different environments and temperatures. Therefore the choice of material is critical for the refractory anchors. HESLs experience and assist with determining the most appropriate materials for each individual application.
HESLY supply anchors in a variety of material options including standard heat resisting alloys such as 304, 310 & 253 and can also supply specialist alloys such as 601 and DS in a variety of diameters.
For special requests please contact us for a custom quotation and lead time.
Typical Service Temperature
| Anchorage Material |
Chemical Composition |
Typical Service
Temperature
|
| AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
| 304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
| 316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
| 321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
| 310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
| Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
| Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
| 410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
| CARBON STEEL |
VARIOUS |
550℃ |
Hexmesh Gallery
Photo Gallery - HESLY Hexsteel Mesh
 |
|
| Radius conor tabs |
Hexmesh S Type Anchors |
|
|
| S Type Hexmetal conor tabs |
410S Hexmesh |
|
|
| Type S Refractory Anchors Drawing |
Hexsteel Mesh Anchors |
