|Material:||SAE1020, 309,304,304H,310S,321,410 Carbon Steel||Technical:||Perforating & Clinched|
|Standard Panel Size:||36"X120" (914X3050mm)||Package:||Steel Pallet|
|Construction Type:||Clinched||Bar Size & Shape:||50mm Height X 2.0mm Thick Rectangular Bar|
Hex-mesh is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining’s upper crust, which prevents spalling and cracking. As a result of hex metal’s strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.
The main style of HESLY Hex Mesh
Hexsteel: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

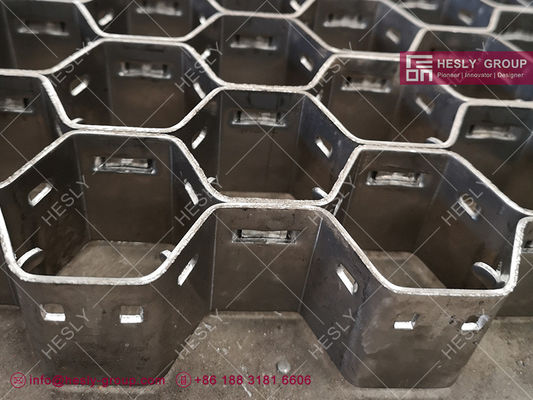

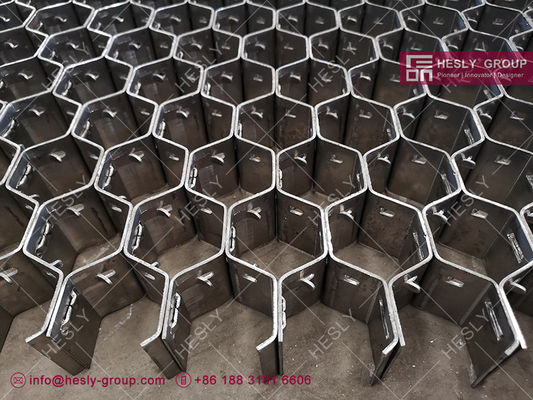

Hex-metal: Pronges/Lances Type
this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
Hex mesh is flexible and easily conforms to circular shapes, which allows it to be rolled. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.
Hex steel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.
|Anchorage Material||Chemical Composition||
|1||1.2 X 10 X 50mm||1.2mm||10mm||40mm|
|2||1.2 X 15 X 50mm||1.2mm||15mm||50mm|
|3||1.2 X 20 X 50mm||1.2mm||20mm||50mm|
|4||1.5 X 10 X 50mm||1.5mm||10mm||50mm|
|5||1.5 X 15 X 50mm||1.5mm||15mm||50mm|
|6||1.5 X 20 X 50mm||1.5mm||20mm||50mm|
|7||1.8 X 15 X 50mm||1.8mm||15mm||50mm|
|8||1.8 X 20 X 50mm||1.8mm||20mm||50mm|
|9||1.8 X 25 X 50mm||1.8mm||25mm||50mm|
|10||2.0 X 15 X 50mm||2.0mm||15mm||50mm|
|11||2.0 X 20 X 50mm||2.0mm||20mm||50mm|
|12||2.0 X 25 X 50mm||2.0mm||25mm||50mm|
|13||2.0 X 30 X 50mm||2.0mm||30mm||50mm|
|14||2.0 X 30 X 80mm||2.0mm||30mm||80mm|
|Remark||A/F||Min: 40mm Max: 100mm|
