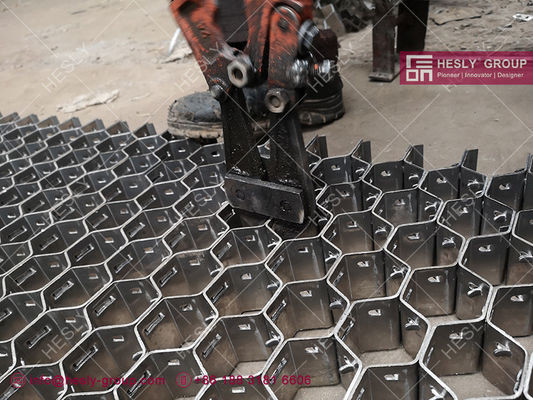

15mm depth X 16gauge AISI304 Stainless Steel Hex mesh 36"X120" | China Hexmesh Exporter
Hex Steel (hexmesh) are sheets of mild/carbon or stainless steel made up of hexagonal cells that are punched & welded together to form custom sheets to fit specific applications. Hex steel can be rolled to fit round vessels and are used in conjunction with Monster Tabs, Flex Tabs, Corner Tabs. Hex steel is used in highly abrasive applications and are available in many different heights based on the lining thickness.
The main style of HESLY Hex Mesh
 |
|
|
Hexsteel: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
|
Hex-metal: Pronges/Lances Type
this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
|
Application of HESLY Hex mesh:
Hex mesh is flexible and easily conforms to circular shapes, which allows it to be rolled. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.
Hex steel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.
HESLY hexsteel Typical Service Temperature:
| Anchorage Material |
Chemical Composition |
Typical Service
Temperature
|
| AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
| 304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
| 316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
| 321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
| 310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
| Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
| Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
| 410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
| CARBON STEEL |
VARIOUS |
550℃ |
Common Specification Sheet
| ITEM |
SPECS |
B |
A |
AF |
| 1 |
1.2 X 10 X 50mm |
1.2mm |
10mm |
40mm |
| 2 |
1.2 X 15 X 50mm |
1.2mm |
15mm |
50mm |
| 3 |
1.2 X 20 X 50mm |
1.2mm |
20mm |
50mm |
| 4 |
1.5 X 10 X 50mm |
1.5mm |
10mm |
50mm |
| 5 |
1.5 X 15 X 50mm |
1.5mm |
15mm |
50mm |
| 6 |
1.5 X 20 X 50mm |
1.5mm |
20mm |
50mm |
| 7 |
1.8 X 15 X 50mm |
1.8mm |
15mm |
50mm |
| 8 |
1.8 X 20 X 50mm |
1.8mm |
20mm |
50mm |
| 9 |
1.8 X 25 X 50mm |
1.8mm |
25mm |
50mm |
| 10 |
2.0 X 15 X 50mm |
2.0mm |
15mm |
50mm |
| 11 |
2.0 X 20 X 50mm |
2.0mm |
20mm |
50mm |
| 12 |
2.0 X 25 X 50mm |
2.0mm |
25mm |
50mm |
| 13 |
2.0 X 30 X 50mm |
2.0mm |
30mm |
50mm |
| 14 |
2.0 X 30 X 80mm |
2.0mm |
30mm |
80mm |
| Remark |
A/F |
Min: 40mm Max: 100mm |
| |
MATERIAL |
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S |
Typical Service Temperature of Different Material for Hex Mesh
| Anchorage Material |
Chemical Composition |
Typical Service
Temperature
|
| AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
| 304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
| 316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
| 321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
| 310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
| Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
| Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
| 410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
| CARBON STEEL |
VARIOUS |
550℃ |
Hexmesh Gallery
Photo Gallery - HESLY Hexsteel Mesh
|
|
| China Hexsteel Mesh Factory |
Hexsteel Strips |
|
|
| HESLY HexMesh |
HESLY Hexmetal |
|
|
| Hexsteel Refractory Linings |
Hex Steel Mesh China Factory |
