Product Details:

Place of Origin: E-on hexmesh, Anping, China
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: HS-2.0/20/50

Payment & Shipping Terms:

Minimum Order Quantity: 1 ㎡
Price: negotiated as per the order
Packaging Details: Pallet
Delivery Time: according to the order (in stock)
Payment Terms: TT/LC
Supply Ability: 800㎡/day
Detailed Product Description
Material: Ss321 Stainless Steel Plate Thickness: 2.0mm
Height: 1" Size: 960mmx2000mm

Refractory Hexsteel Anchors

HESLY hex metal, hex mesh & hexsteel, your best choice for  Anchoring & Reinforcement for Refractories and Concrete Flooring !!!

SS321 Hex mesh is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. The hex steel mesh acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of hex metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.

extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.

HESLY Hexsteel China Factory HESLY Hexsteel China Factory

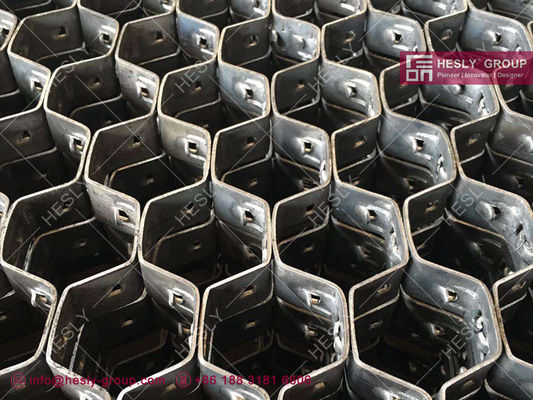

Hexsteel: Bonding Hole Type

Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

Hex-metal: Pronges/Lances Type

this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.





Application of HESLY Hex mesh grid:

  • As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
  • Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
  • Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.

HESLY hexsteel Typical Service Temperature:

Anchorage Material Chemical Composition

Typical Service

Temperature

AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 750℃
CARBON STEEL VARIOUS 550℃



Common Specification Sheet

ITEM SPECS B A AF
1 1.2 X 10 X 50mm 1.2mm 10mm 40mm
2 1.2 X 15 X 50mm 1.2mm 15mm 50mm
3 1.2 X 20 X 50mm 1.2mm 20mm 50mm
4 1.5 X 10 X 50mm 1.5mm 10mm 50mm
5 1.5 X 15 X 50mm 1.5mm 15mm 50mm
6 1.5 X 20 X 50mm 1.5mm 20mm 50mm
7 1.8 X 15 X 50mm 1.8mm 15mm 50mm
8 1.8 X 20 X 50mm 1.8mm 20mm 50mm
9 1.8 X 25 X 50mm 1.8mm 25mm 50mm
10 2.0 X 15 X 50mm 2.0mm 15mm 50mm
11 2.0 X 20 X 50mm 2.0mm 20mm 50mm
12 2.0 X 25 X 50mm 2.0mm 25mm 50mm
13 2.0 X 30 X 50mm 2.0mm 30mm 50mm
14 2.0 X 30 X 80mm 2.0mm 30mm 80mm
Remark A/F Min: 40mm Max: 100mm
  MATERIAL A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S



HESLY Hex-mesh Typical Service Temperature:

Anchorage Material Chemical Composition

Typical Service

Temperature

AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 750℃
CARBON STEEL VARIOUS 550℃
