Inconel 601 Hexsteel (hex metal) is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of hex metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.
Since hexsteel's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape.
Inconel 601 hexsteel refractory lining is the direct counterpart of hex metal, it performs all the same functions of reinforcement of thin wall refractory linings, while its design allows free form rolling to very small diameters. Hex metal becomes impractical to use when the section of plant being protected is of small diameter, the free rolling capabilities of flex metal allows plant as small as 150mm to lined. Typical applications include air distributors, fan cases and all plants where the practicality of free rolling material is beneficial to maintenance activities.
 |
|
|
Hexsteel: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
|
Hex-metal: Pronges/Lances Type

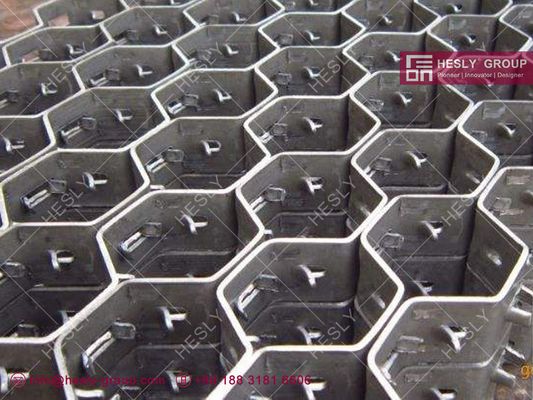

this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
|
Application of HESLY Hex mesh grid:
- As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
- Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
- Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.
HESLY hexsteel Typical Service Temperature:
| Anchorage Material |
Chemical Composition |
Typical Service
Temperature
|
| AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
| 304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
| 316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
| 321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
| 310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
| Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
| Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
| 410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
| CARBON STEEL |
VARIOUS |
550℃ |
Common Specification Sheet
| ITEM |
SPECS |
B |
A |
AF |
| 1 |
1.2 X 10 X 50mm |
1.2mm |
10mm |
40mm |
| 2 |
1.2 X 15 X 50mm |
1.2mm |
15mm |
50mm |
| 3 |
1.2 X 20 X 50mm |
1.2mm |
20mm |
50mm |
| 4 |
1.5 X 10 X 50mm |
1.5mm |
10mm |
50mm |
| 5 |
1.5 X 15 X 50mm |
1.5mm |
15mm |
50mm |
| 6 |
1.5 X 20 X 50mm |
1.5mm |
20mm |
50mm |
| 7 |
1.8 X 15 X 50mm |
1.8mm |
15mm |
50mm |
| 8 |
1.8 X 20 X 50mm |
1.8mm |
20mm |
50mm |
| 9 |
1.8 X 25 X 50mm |
1.8mm |
25mm |
50mm |
| 10 |
2.0 X 15 X 50mm |
2.0mm |
15mm |
50mm |
| 11 |
2.0 X 20 X 50mm |
2.0mm |
20mm |
50mm |
| 12 |
2.0 X 25 X 50mm |
2.0mm |
25mm |
50mm |
| 13 |
2.0 X 30 X 50mm |
2.0mm |
30mm |
50mm |
| 14 |
2.0 X 30 X 80mm |
2.0mm |
30mm |
80mm |
| Remark |
A/F |
Min: 40mm Max: 100mm |
| |
MATERIAL |
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S |
HESLY Hexsteel Typical Service Temperature:
| Anchorage Material |
Chemical Composition |
Typical Service
Temperature
|
| AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
| 304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
| 316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
| 321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
| 310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
| Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
| Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
| 410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
| CARBON STEEL |
VARIOUS |
550℃ |
