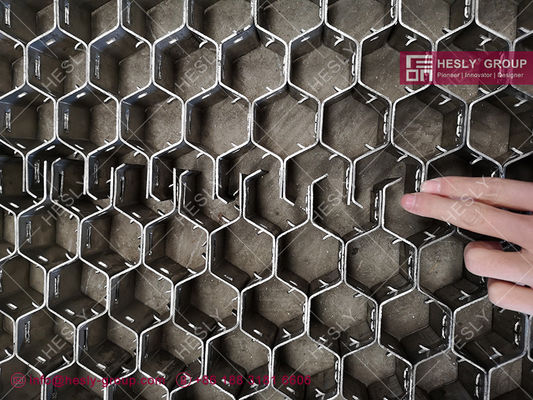

Stainless Steel 304H Hexsteel | 1.0mm thickness strip | 19mm depth | 2" hexagonal hole | 1mX1m Sheet - HESLY
HESLY's Hex Steel Grating (Hex mesh, Hex metal) is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of Hexsteel's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the surface material because they are reflected away from the surface by the metal cellular grid.
Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration.
Flexible Mesh
Flex Hexmetal is the direct counterpart of Hex metal. It performs all the same functions in reinforcement of thin wall refractory linings, while its' design allows free form rolling to very small diameters. Hex metal becomes impractical when the section of plant being protected is of small diameter. The free rolling capabilities of Flex metal allows plant as small as 150 mm to be lined. Typical applications include Air Distributors, Cyclone Dip legs, Fan Cases, or any other plants where the practicality of free rolling material is beneficial to maintenance activities.
Main style of HESLY Hex Mesh
 |
|
|
Hexsteel: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
|
Hex-metal: Pronges/Lances Type
this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
|
|
|
| Double Clench Bonding Hexmesh |
Offset Clench Hexmetal |
Application of HESLY Hex mesh:
Hex mesh is flexible and easily conforms to circular shapes, which allows it to be rolled. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.
Hex steel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.
HESLY hexmetal Typical Service Temperature:
| Anchorage Material |
Chemical Composition |
Typical Service
Temperature
|
| AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
| 304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
| 316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
| 321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
| 310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
| Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
| Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
| 410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
| CARBON STEEL |
VARIOUS |
550℃ |
Common Specification Sheet
| ITEM |
SPECS |
B |
A |
AF |
| 1 |
1.2 X 10 X 50mm |
1.2mm |
10mm |
40mm |
| 2 |
1.2 X 15 X 50mm |
1.2mm |
15mm |
50mm |
| 3 |
1.2 X 20 X 50mm |
1.2mm |
20mm |
50mm |
| 4 |
1.5 X 10 X 50mm |
1.5mm |
10mm |
50mm |
| 5 |
1.5 X 15 X 50mm |
1.5mm |
15mm |
50mm |
| 6 |
1.5 X 20 X 50mm |
1.5mm |
20mm |
50mm |
| 7 |
1.8 X 15 X 50mm |
1.8mm |
15mm |
50mm |
| 8 |
1.8 X 20 X 50mm |
1.8mm |
20mm |
50mm |
| 9 |
1.8 X 25 X 50mm |
1.8mm |
25mm |
50mm |
| 10 |
2.0 X 15 X 50mm |
2.0mm |
15mm |
50mm |
| 11 |
2.0 X 20 X 50mm |
2.0mm |
20mm |
50mm |
| 12 |
2.0 X 25 X 50mm |
2.0mm |
25mm |
50mm |
| 13 |
2.0 X 30 X 50mm |
2.0mm |
30mm |
50mm |
| 14 |
2.0 X 30 X 80mm |
2.0mm |
30mm |
80mm |
| Remark |
A/F |
Min: 40mm Max: 100mm |
| |
MATERIAL |
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S |
