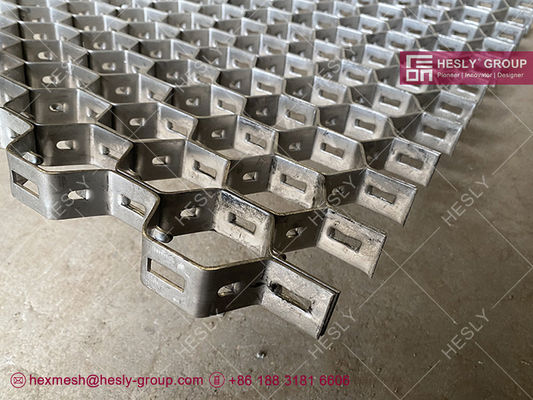

Refractory Lining Hexsteel Mesh | SS310S grade | 1" deep | 14 gauge thickness | 2" hexagonal mesh | China Hesly Factory
Detailed Product Description
| Material: |
SS310S |
Technical: |
Perforating & Clinched |
| Standard Panel Size: |
960x2000mm |
Package: |
Steel Pallet |
| Construction Type: |
Clinched |
Bar Size & Shape: |
30mm Height X 2.0mm Thick Rectangular Bar |
Refractory Lining Hexsteel Mesh | SS310S grade | 1" deep | 14 gauge thickness | 2" hexagonal mesh | China Hesly Factory
Hex Steel Mesh (hex mesh) are sheets of mild/carbon or stainless steel made up of hexagonal cells that are punched & welded together to form custom sheets to fit specific applications. Hex steel can be rolled to fit round vessels and are used in conjunction with Monster Tabs, Flex Tabs, Corner Tabs. Hex steel is used in highly abrasive applications and are available in many different heights based on the lining thickness.
|
|
|
- Superior retention for erosion resistant refractories
|
- Manufacturer and install options
|
- Specified by name in the Refining and Petrochemical industries
|
- Manufactured to client specification
|
The main style of HESLY Hex Mesh
 |
|
|
Hexsteel: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
|
Hex-metal: Pronges/Lances Type
this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
|
|
|
| Standard Flexible Mesh |
Flexible Mesh with Lances |
Hexsteel Application
Hex mesh is flexible and easily conforms to circular shapes, which allows it to be rolled. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.
Hex steel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.
Raw Material Typical Service Temperature
| Anchorage Material |
Chemical Composition |
Typical Service
Temperature
|
| AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
| 304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
| 316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
| 321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
| 310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
| Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
| Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
| 410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
| CARBON STEEL |
VARIOUS |
550℃ |
Common Specification Sheet
| ITEM |
SPECS |
B |
A |
AF |
| 1 |
1.2 X 10 X 50mm |
1.2mm |
10mm |
40mm |
| 2 |
1.2 X 15 X 50mm |
1.2mm |
15mm |
50mm |
| 3 |
1.2 X 20 X 50mm |
1.2mm |
20mm |
50mm |
| 4 |
1.5 X 10 X 50mm |
1.5mm |
10mm |
50mm |
| 5 |
1.5 X 15 X 50mm |
1.5mm |
15mm |
50mm |
| 6 |
1.5 X 20 X 50mm |
1.5mm |
20mm |
50mm |
| 7 |
1.8 X 15 X 50mm |
1.8mm |
15mm |
50mm |
| 8 |
1.8 X 20 X 50mm |
1.8mm |
20mm |
50mm |
| 9 |
1.8 X 25 X 50mm |
1.8mm |
25mm |
50mm |
| 10 |
2.0 X 15 X 50mm |
2.0mm |
15mm |
50mm |
| 11 |
2.0 X 20 X 50mm |
2.0mm |
20mm |
50mm |
| 12 |
2.0 X 25 X 50mm |
2.0mm |
25mm |
50mm |
| 13 |
2.0 X 30 X 50mm |
2.0mm |
30mm |
50mm |
| 14 |
2.0 X 30 X 80mm |
2.0mm |
30mm |
80mm |
| Remark |
A/F |
Min: 40mm Max: 100mm |
| |
MATERIAL |
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S |
Hexsteel Gallery
Photo Gallery - HESLY Hexsteel Mesh
|
|
| China Hexsteel Mesh Factory |
Hexsteel Reactors |
|
|
| 310S Hexsteel |
HESLY Hexmetal |
|
|
| Hexsteel Refractory Linings |
Hex Steel Mesh China Factory |
Package and Delivery
| |
|
| Hexsteel HESLY China |
Hexsteel China Factory |
