AISI316 Hex Metal lances type | 40mm Depth X2.0mmTHK | China Stainless Steel Hexmetal Factory

Hexmetal (also named hex mesh, hexsteel) is a hexagon shaped grid used in the installation of thick linings. Hexmetal supports the lining and prevents slumps. It retards erosion, corrosion, cracking, blistering, pitting or collapse thereby lengthening the life of the lining. Hexmetal is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the steel shell and the armored surface. The slots permit passage of the castable which forms a key between adjacent cells. Available in standard and lance pattern.

FOR REFRACTORIES
The flexibility, high strength and erosion resistant characteristics of Hexmesh make it an excellent choice for refractory linings in furnaces, reactors, cyclones, ducts and flues.
FOR FLOORS
Hexmetal provides long term protection for armor applications inside industrial floors. Specifically, loading docks, ramps, high traffic aisles for forklifts and trucks. Hot floors for foundries, forge shops and steel mills. Refuse and recycle disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads. All will benefit with Hexmesh

Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.

The flexibility of HESLY’s Hexmetal allows it to be rolled, and easily conforms to circular shapes. It is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the metal shell and the armoured surface.

Standard Bonding Hole Pattern	Lance Pattern

HESLY Hex Metal:

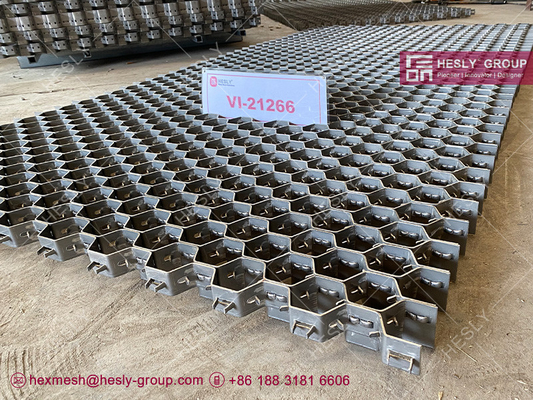

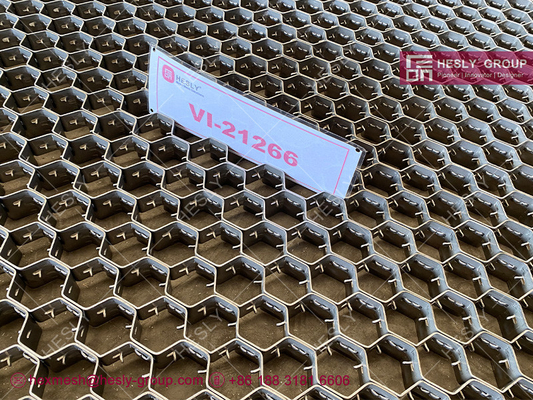

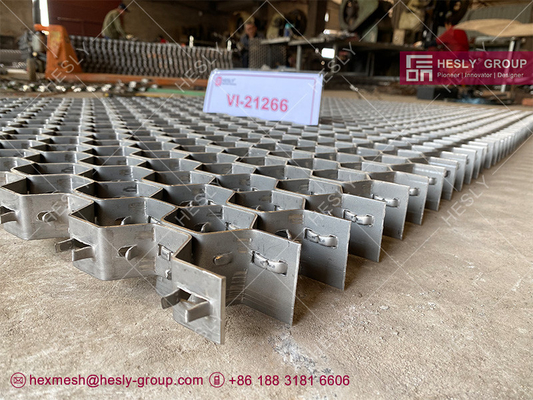

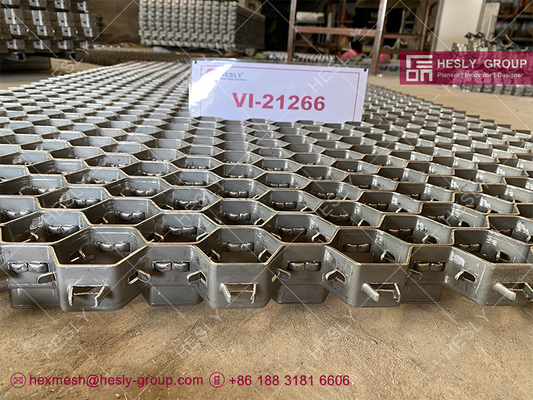

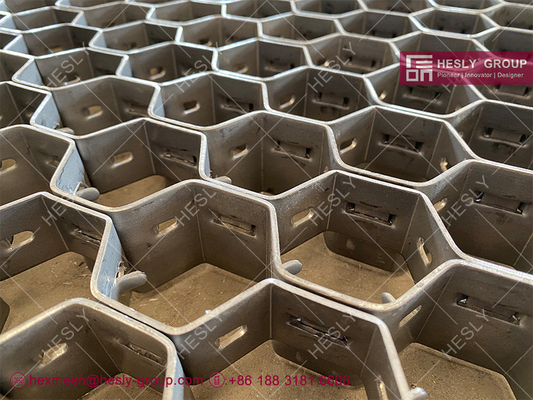

Reference Photos of Hexmetal

Hex Metal with lances China Supplier	Hex Metal with lances China Exporter
Double Clench Hexmetal	HESLY Double Clench Hexmetal
Hexmetal Strips	Hexmetal Strips
