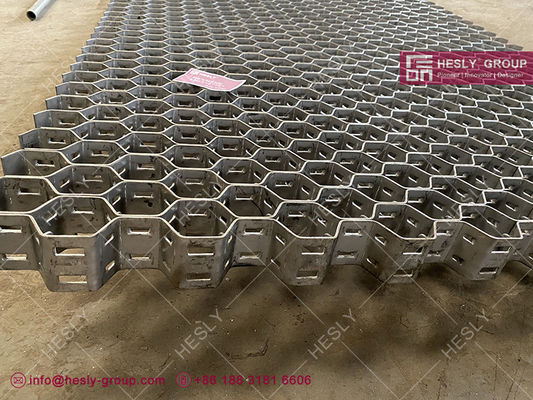

Large Image :  SS321 Hexmesh with Lances for Refractory Linings in Combustion Chambers| China Hex-Mesh Supplier | 1mx2m, 45pcs/pallet

Product Details:

Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: HEX1520321

Payment & Shipping Terms:

Minimum Order Quantity: 1 ㎡
Price: negotiated as per the order
Packaging Details: Pallet
Delivery Time: according to the order (in stock)
Payment Terms: TT/LC
Supply Ability: 800㎡/day
Contact Now
Detailed Product Description
Material: 410s, 304, Low Carbon Mild Steel Gauge: 1.5mm
Standard Size: 1m Wide, 2m Long Standard Thickness: 20mm
Standard Package: 45 Panels Per Pallet

SS321 Hexmesh with 10mm Lances for Refractory Linings in Combustion Chambers | China Hex-Mesh Supplier | 1mx2m

Refractory HexmeshChina HESLY Hex Mesh - for Refractory Lining in ducts

HESLY's Hexmesh (Hex steel, Hex metal) is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of Hexsteel's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the surface material because they are reflected away from the surface by the metal cellular grid.

Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration.

Flex Hexsteel

Flex Hexmetal is the direct counterpart of Hex metal. It performs all the same functions in reinforcement of thin wall refractory linings, while its' design allows free form rolling to very small diameters. Hex metal becomes impractical when the section of plant being protected is of small diameter. The free rolling capabilities of Flex metal allows plant as small as 150 mm to be lined. Typical applications include Air Distributors, Cyclone Dip legs, Fan Cases, or any other plants where the practicality of free rolling material is beneficial to maintenance activities.

USES FOR HESLY HEX METAL

Refractory Linings in Furnaces | Ducts and Flue Gas Lines | Cyclones | Reactors | Reactor Vessels | Windboxes | Fan Casings Regenerators | Tanks | Ashpits | Heaters

HESLY hexmesh Typical Service Temperature:

Anchorage Material

Chemical Composition

Typical Service

Temperature

AISI

DIN

C%

Si%

Mn%

P%

S%

Cr%

Ni%

others

304

1.4301

≤0.08

≤1.00

≤2.00

≤0.45

≤0.30

18.0—20.0

8.0—10.0

N

800℃

316

1.4401/1.4436

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

16.0—18.0

10.0—14.0

N:Mo

800℃

321

1.4541

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

17.0—19.0

9.0—12.0

Ti

800℃

310S

1.4845

≤0.08

≤1.50

≤2.00

≤0.45

≤0.30

24.0—26.0

19.0—22.0

1150℃

Inconel 601

2.4851

≤0.10

≤0.50

≤1.00

≤0.15

21.0—25.0

58.0—63.0

Al:Cu

1200℃

Inconel 800

1.4876

≤0.10

≤1.00

≤1.50

≤0.45

≤0.15

19.0—23.0

30.0—35.0

Al:Ti

1200℃

410S

1.4001

≤0.08

≤1.00

≤1.00

≤0.40

≤0.30

11.5—13.5

≤0.60

750℃

CARBON STEEL

VARIOUS

550℃

Features of Stainless Steel which used for Hex Mesh:

SS

Features

304

Good heat resistance ,corrosion resistance ,strength at low temperature and mechanical

properties, good hot working performance  for example punching,bending,etc , no heat

treatment influence phenomenon(nonmagnetic,U-96°C-800°C).

304L

As one kind of low carbon SS304,In the general, the similar corrosion resistance with

SS 304 .But after welding or in eliminating stress, the outstanding ability of the resistance

to corrosion of grain boundaries In under the condition of no-heat treatment, maintain

good corrosion resistance,Used in -196°C~800°C.

316

Owing to add to Mo,So the corrosion resistance of atmospheric and high temperature

strength are very good,Can be used in harsh conditions ,Processing sclerosing optimal

(nonmagnetic).

316L

As one kind of low carbon series SSS316, in addition to the same feature of  SS316,

Optimal resistance to corrosion of grain boundaries

310S

As heat-resistant part in the under the temperature 1100°C,Oxidation stability  steel ,etc

HESLY hex metal ordinary specs:

HESLY-hex Metal ordinary specifications

ITEM

SPECS

B

A

AF

1

1.2 X 10 X 50mm

1.2mm

10mm

40mm

2

1.2 X 15 X 50mm

1.2mm

15mm

50mm

3

1.2 X 20 X 50mm

1.2mm

20mm

50mm

4

1.5 X 10 X 50mm

1.5mm

10mm

50mm

5

1.5 X 15 X 50mm

1.5mm

15mm

50mm

6

1.5 X 20 X 50mm

1.5mm

20mm

50mm

7

1.8 X 15 X 50mm

1.8mm

15mm

50mm

8

1.8 X 20 X 50mm

1.8mm

20mm

50mm

9

1.8 X 25 X 50mm

1.8mm

25mm

50mm

10

2.0 X 15 X 50mm

2.0mm

15mm

50mm

11

2.0 X 20 X 50mm

2.0mm

20mm

50mm

12

2.0 X 25 X 50mm

2.0mm

25mm

50mm

13

2.0 X 30 X 50mm

2.0mm

30mm

50mm

14

2.0 X 30 X 80mm

2.0mm

30mm

80mm

Remark

A/F

Min: 40mm   Max: 100mm



MATERIAL

A3 ,0Cr13,ss304,ss316,ss321,ss310S

HESLY Flex metal:

Hexsteel for refractory lining
304 Stainless Steel Hexmesh stainless steel 304 hexmetal
  Flexmetal with lances    Flex metal with lances
China Hexmetal 316 hexmesh
Hexmetal with binding holes  Hexmesh China Factory
HESLY Hexmetal China China Hexsteel
Hex Mesh for cyclone Hex Mesh for cyclone
