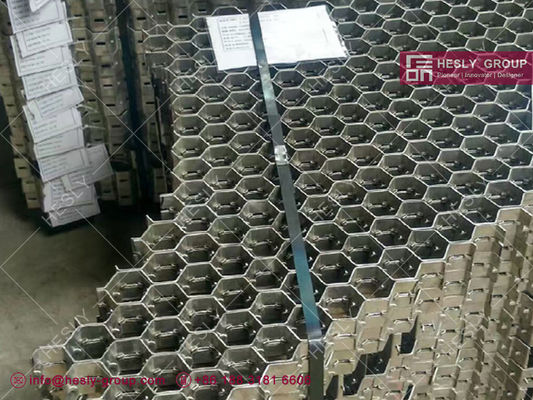

Large Image :  Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining | 2.0X19 Strips | 50mm | Hesly Hexsteel China

Product Details:

Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY
Certification: ISO:9001:2008
Model Number: HM-20/19/50

Payment & Shipping Terms:

Minimum Order Quantity: 1 ㎡
Price: Negotiated according to the order
Packaging Details: Steel Pallet
Delivery Time: As Per the Order (hexmetal in stock)
Payment Terms: TT/LC
Supply Ability: 800 square meter/day
Contact Now
Detailed Product Description
Wire Diameter: 2.0mm Material: SUS321 Steel Plate
Type: Perforated Mesh Application: Protecting Mesh
Technique: Perforated

Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining | 2.0x19mm strips | 9600X2000mm| Hesly Hexsteel China

Hex Steel (hex mesh) are sheets of mild/carbon or stainless steel made up of hexagonal cells that are punched & welded together to form custom sheets to fit specific applications. Hex steel can be rolled to fit round vessels and are used in conjunction with Monster Tabs, Flex Tabs, Corner Tabs. Hex steel is used in highly abrasive applications and are available in many different heights based on the lining thickness.



Hex mesh grid refractory lining is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. The hex steel mesh acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of hex metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.

HESLY Hexsteel China Factory HESLY Hexsteel China Factory
Hexsteel: Bonding Hole Type Hexsteel: Pronges Type



Application of HESLY hex mesh grid

  1. As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
  2. Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
  3. Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.

Raw Material Typical Service Temperature

Anchorage Material Chemical Composition

Typical Service

Temperature

AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 750℃
CARBON STEEL VARIOUS 550℃



Common Specification Sheet

ITEM SPECS B A AF
1 1.2 X 10 X 50mm 1.2mm 10mm 40mm
2 1.2 X 15 X 50mm 1.2mm 15mm 50mm
3 1.2 X 20 X 50mm 1.2mm 20mm 50mm
4 1.5 X 10 X 50mm 1.5mm 10mm 50mm
5 1.5 X 15 X 50mm 1.5mm 15mm 50mm
6 1.5 X 20 X 50mm 1.5mm 20mm 50mm
7 1.8 X 15 X 50mm 1.8mm 15mm 50mm
8 1.8 X 20 X 50mm 1.8mm 20mm 50mm
9 1.8 X 25 X 50mm 1.8mm 25mm 50mm
10 2.0 X 15 X 50mm 2.0mm 15mm 50mm
11 2.0 X 20 X 50mm 2.0mm 20mm 50mm
12 2.0 X 25 X 50mm 2.0mm 25mm 50mm
13 2.0 X 30 X 50mm 2.0mm 30mm 50mm
14 2.0 X 30 X 80mm 2.0mm 30mm 80mm
Remark A/F Min: 40mm Max: 100mm
  MATERIAL A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S



Photo Gallery - HEXSTEEL

Photo Gallery - HESLY Hexsteel Mesh
HESLY Hexsteel China 310S Hex Metal Grating
304 Hexsteel Grate 310S Hex Metal Grating
309 hexsteel China ST37 carbon steel Hexsteel
Hex Steel With Pronges ST37 Hexsteel
HESLY's Armour-Anchors can be used in combination with Hexmetals / Flexmetals or as stand alone systems.
steel wire anchors plate punched achors
Steel Rod Formed Anchors Plate Punched Anchors



Package and Delivery

310S Hex metal grating HESLY HESLY Hexsteel China Factory
Refractory Hexsteel Lining Holder HESLY Hexsteel China Factory



HESLY Refractory Hex Metal Mesh
