253MA Hexmetal for Duct Linings | H19mm | 2.0mm thickness | 50mm hole | HESLY Brand, CHINA

Large Image : 253MA Hexmetal for Duct Linings | H19mm | 2.0mm thickness | 50mm hole | HESLY Brand, CHINA

Product Details:

Place of Origin:	Hesly Metal Mesh, CHINA
Brand Name:	HESLY
Certification:	ISO9001：2008
Model Number:	HEX225304H

Payment & Shipping Terms:

Minimum Order Quantity:	1 ㎡
Price:	negotiated as per the order
Packaging Details:	Pallet
Delivery Time:	according to the order (in stock)
Payment Terms:	TT/LC
Supply Ability:	800㎡/day

Contact Now

Detailed Product Description

Material:	1.4835	Thickness:	14G
Hole:	2"	Height:	1"
Package:	Steel Pallet

253MA Hexmetal for Duct Linings | H19mm | 2.0mm thickness | 50mm hole | HESLY Brand, CHINA

Hex Mesh (Hexmetal) is a unique honeycombed steel designed to provide excellent retention and reinforcement of thin wall refractories. It fully complements dense hydraulic and chemically bonded refractories in resisting erosion. Superior retention for erosion resistant refractories.


Hex-Mesh: Bonding Hole Type	Hex mesh: Pronges Type

Application of HESLY hex mesh grid:

As refractories, hexsteel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.

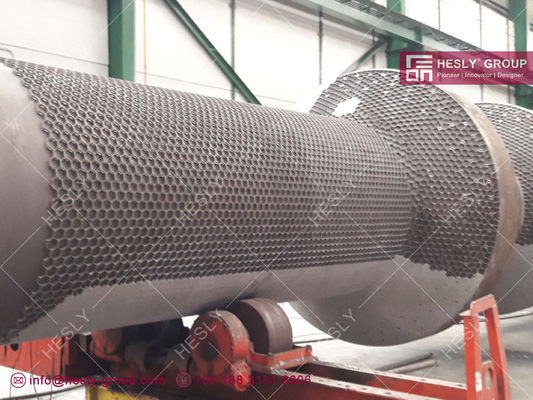

Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.
Application Areas: Duct Linings, Cyclones, Dryers, Cat Crackers, Reactors, Tanks Stacks, Fan housing, Loading docks And other areas where monolithic linings are used.

HESLY hexsteel Typical Service Temperature:

Anchorage Material		Chemical Composition								Typical Service Temperature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Typical Service Temperature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL		VARIOUS								550℃

Common Specification Sheet

ITEM	SPECS		B	A	AF
1	1.2 X 10 X 50mm		1.2mm	10mm	40mm
2	1.2 X 15 X 50mm		1.2mm	15mm	50mm
3	1.2 X 20 X 50mm		1.2mm	20mm	50mm
4	1.5 X 10 X 50mm		1.5mm	10mm	50mm
5	1.5 X 15 X 50mm		1.5mm	15mm	50mm
6	1.5 X 20 X 50mm		1.5mm	20mm	50mm
7	1.8 X 15 X 50mm		1.8mm	15mm	50mm
8	1.8 X 20 X 50mm		1.8mm	20mm	50mm
9	1.8 X 25 X 50mm		1.8mm	25mm	50mm
10	2.0 X 15 X 50mm		2.0mm	15mm	50mm
11	2.0 X 20 X 50mm		2.0mm	20mm	50mm
12	2.0 X 25 X 50mm		2.0mm	25mm	50mm
13	2.0 X 30 X 50mm		2.0mm	30mm	50mm
14	2.0 X 30 X 80mm		2.0mm	30mm	80mm
Remark	A/F	Min: 40mm Max: 100mm
	MATERIAL	A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S
