|Material:||309,304,304H,310S,321,410 Carbon Steel||Technical:||Perforating & Riveting|
|Gauge:||12#, 14#, 16# Etc.||Thickness:||3/4", 1", 2" Etc|
|Standard Panel Size:||36"X120" (914X3050mm)||Package:||Steel Pallet|
Hexmetal, also named refractory furnace lining, is a hexagon shaped grid used in the installation of thick linings. Hexmetal supports the lining and prevents slumps. It retards erosion, corrosion, cracking, blistering, pitting or collapse thereby lengthening the life of the lining. Hexmetal is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the steel shell and the armored surface. The slots permit passage of the castable which forms a key between adjacent cells. Available in standard and lance pattern.
Standard Type - Hexsteel Mesh
Hexsteel: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

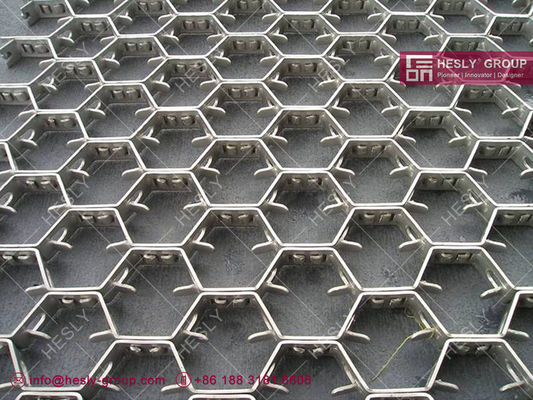

Hex-metal: Pronges/Lances Type
this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
Hex mesh is flexible and easily conforms to circular shapes, which allows it to be rolled. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.
Hex steel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.
|Anchorage Material||Chemical Composition||
|1||1.2 X 10 X 50mm||1.2mm||10mm||40mm|
|2||1.2 X 15 X 50mm||1.2mm||15mm||50mm|
|3||1.2 X 20 X 50mm||1.2mm||20mm||50mm|
|4||1.5 X 10 X 50mm||1.5mm||10mm||50mm|
|5||1.5 X 15 X 50mm||1.5mm||15mm||50mm|
|6||1.5 X 20 X 50mm||1.5mm||20mm||50mm|
|7||1.8 X 15 X 50mm||1.8mm||15mm||50mm|
|8||1.8 X 20 X 50mm||1.8mm||20mm||50mm|
|9||1.8 X 25 X 50mm||1.8mm||25mm||50mm|
|10||2.0 X 15 X 50mm||2.0mm||15mm||50mm|
|11||2.0 X 20 X 50mm||2.0mm||20mm||50mm|
|12||2.0 X 25 X 50mm||2.0mm||25mm||50mm|
|13||2.0 X 30 X 50mm||2.0mm||30mm||50mm|
|14||2.0 X 30 X 80mm||2.0mm||30mm||80mm|
|Remark||A/F||Min: 40mm Max: 100mm|
Max2.0mm for stainless steel;
Max3.0mm for carbon steel
|Carbon Steel Hexsteel||310S Hexmetal China Factory|
|HESLY HexMesh||Refractory Furnace Lining|
|Refractory Anchors||Refractory Anchors|
