Product Details:
Payment & Shipping Terms:
|
Construction Type: | Clinched | Bar Shape: | Rectangular Bar |
---|---|---|---|
Primary Material: | Stainless Steel | Alloy, Grade Or Type: | Varies Steel Type |
Material Finish: | Mill Finish | Product Surface: | Smooth |
Sizes: | 1mx2m |
Hex mesh Hexagonal mesh or Hexmesh as it often referred to is a honey comb pattern of steel bars used to retain refractories in anti-abrasive and anti-corrosive thin wall linings used in the oil, petrochemical, metallurgical, chemical, and cement industries.
The HESLY™ range of hexagonal mesh comprises many different styles with or without protruding (突出的)lances to meet the specifications set by process engineering companies and refractory suppliers.
HESLY™ hexagonal mesh can be supplied in flat panels manufactured from 19 tor 25mm thick plates and supplied in panels 2000x1000mm or rolled and tailored for welding to the walls of cyclones, reactors, furnaces and vessels.

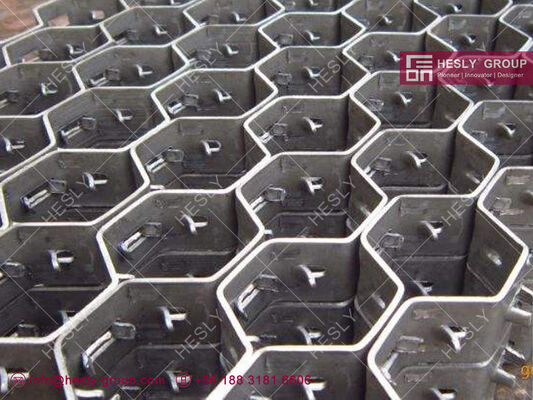

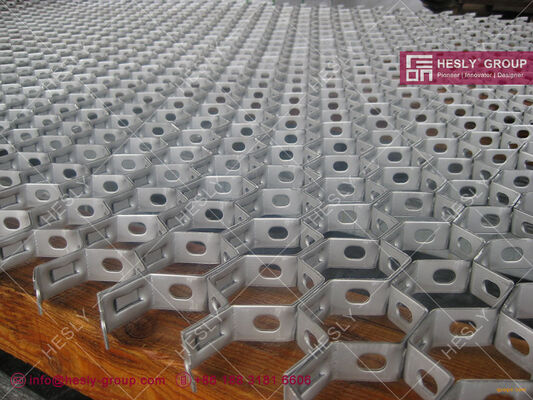

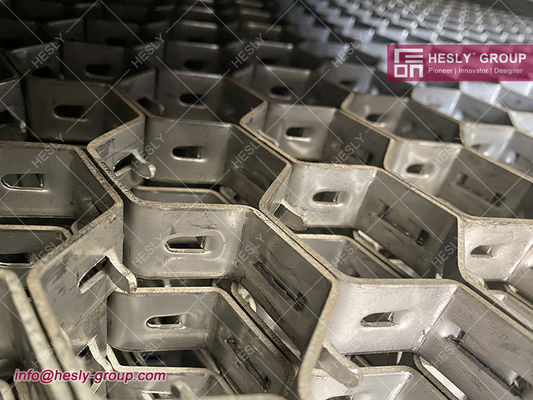

Standard Bonding Hole Pattern | Lance Pattern |
Anchorage Material |
Chemical Composition |
Typical Service Temperature |
||||||||
AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
|
304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
CARBON STEEL |
VARIOUS |
550℃ |
HEX-MESH / HEXMETAL / HEXSTEEL |
|||||
ITEM |
SPECS |
B |
A |
AF |
|
1 |
1.2 X 10 X 50mm |
1.2mm |
10mm |
40mm |
|
2 |
1.2 X 15 X 50mm |
1.2mm |
15mm |
50mm |
|
3 |
1.2 X 20 X 50mm |
1.2mm |
20mm |
50mm |
|
4 |
1.5 X 10 X 50mm |
1.5mm |
10mm |
50mm |
|
5 |
1.5 X 15 X 50mm |
1.5mm |
15mm |
50mm |
|
6 |
1.5 X 20 X 50mm |
1.5mm |
20mm |
50mm |
|
7 |
1.8 X 15 X 50mm |
1.8mm |
15mm |
50mm |
|
8 |
1.8 X 20 X 50mm |
1.8mm |
20mm |
50mm |
|
9 |
1.8 X 25 X 50mm |
1.8mm |
25mm |
50mm |
|
10 |
2.0 X 15 X 50mm |
2.0mm |
15mm |
50mm |
|
11 |
2.0 X 20 X 50mm |
2.0mm |
20mm |
50mm |
|
12 |
2.0 X 25 X 50mm |
2.0mm |
25mm |
50mm |
|
13 |
2.0 X 30 X 50mm |
2.0mm |
30mm |
50mm |
|
14 |
2.0 X 30 X 80mm |
2.0mm |
30mm |
80mm |
|
Remark |
A/F |
Min: 40mm Max: 100mm |
|||
MATERIAL |
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti, 310S, 410S |
Hex Mesh | clinched hex mesh |
Hex-mesh with reinforced strip | Hex Mesh with reinforced strip |
12 gauge thick Hexmesh Sheet | 12 gauge thick Hexmesh Sheet |
Hex Metal Sheet | Hex Metal Sheet |
