|Construction Type:||Clinched||Bar Shape:||Rectangular Bar|
|Primary Material:||Stainless Steel||Alloy, Grade Or Type:||AISI 304H|
|Material Finish:||Mill Finish||Product Surface:||Smooth|
Hexmesh, hexagonal mesh or hexmetal as sometimes referred to is a honeycomb patterm of steel bars used to retain refractories in anti-abrasive and anti-corrosive thin wall linings used in the oil, petrochemical, metallurgical, chemical and cement industries.
The HESLY® range of hexmesh comprises many different styles with or without protruding lances/pronges to meet the specifications set by process engineering companies and refractory suppliers. the HESLY® hexagonal mesh is manufactured in a honeycomb configuration by using shaped metal plates joined together by a special locking system (often referred to as tight clinch) to guarantee high stiffness even after rolling.

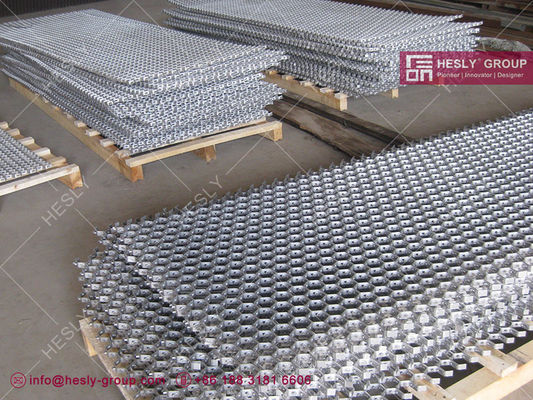

Our hexmesh or hexmetal can be supplied in flat panels manufactured from the popular 19mm, 25mm or 50mm thick plates and supplied in panels 960X1000mm, 1000X2000mm or rolled and tailored for welding to the walls of cyclones, reactors, furnaces and vessels.
Whether you need standard size panels, custom-shapes or rolled products, Antec has the equipment, expertise and experience to meet your needs quickly and cost-effectively.
Hexmesh: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
Hex-mesh: Pronges/Lances Type
this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
|1||1.2 X 10 X 50mm||1.2mm||10mm||40mm|
|2||1.2 X 15 X 50mm||1.2mm||15mm||50mm|
|3||1.2 X 20 X 50mm||1.2mm||20mm||50mm|
|4||1.5 X 10 X 50mm||1.5mm||10mm||50mm|
|5||1.5 X 15 X 50mm||1.5mm||15mm||50mm|
|6||1.5 X 20 X 50mm||1.5mm||20mm||50mm|
|7||1.8 X 15 X 50mm||1.8mm||15mm||50mm|
|8||1.8 X 20 X 50mm||1.8mm||20mm||50mm|
|9||1.8 X 25 X 50mm||1.8mm||25mm||50mm|
|10||2.0 X 15 X 50mm||2.0mm||15mm||50mm|
|11||2.0 X 20 X 50mm||2.0mm||20mm||50mm|
|12||2.0 X 25 X 50mm||2.0mm||25mm||50mm|
|13||2.0 X 30 X 50mm||2.0mm||30mm||50mm|
|14||2.0 X 30 X 80mm||2.0mm||30mm||80mm|
|Remark||A/F||Min: 40mm Max: 100mm|
|Anchorage Material||Chemical Composition||
|Stainless Steel Hexmesh||304H Hexmetal China|
|Hexsteel Refractory Linings||Hex Steel Mesh China Factory|
Package and Delivery
