China Hex-mesh supplier | ss310 stainless steel hex steel | thickness 2.0mm, height 19mm | standarded size 3’x10' |

Certification
Good quality Varies alloys hex steel for sales
Good quality Varies alloys hex steel for sales
Thanks Sunny & Hesly, we received the hexmetal yesterday. Both the products and package are in good condition. Everything is beyond my expactation !

—— Alexdander (Spain)

We got the hexmesh and checked them. The quality is good ! I think we can have another business in near future !

—— Mr. Robert Chris (Brazil)

Robert , Thanks for the swift reply and production of this hexmetal for us, regarding communication and production time your service has been of the best we could expect.

—— Lars

I'm Online Chat Now

China Hex-mesh supplier | ss310 stainless steel hex steel | thickness 2.0mm, height 19mm | standarded size 3’x10' |

China China Hex-mesh supplier | ss310 stainless steel hex steel | thickness 2.0mm, height 19mm | standarded size 3’x10' | supplier
China Hex-mesh supplier | ss310 stainless steel hex steel | thickness 2.0mm, height 19mm | standarded size 3’x10' | supplier China Hex-mesh supplier | ss310 stainless steel hex steel | thickness 2.0mm, height 19mm | standarded size 3’x10' | supplier China Hex-mesh supplier | ss310 stainless steel hex steel | thickness 2.0mm, height 19mm | standarded size 3’x10' | supplier China Hex-mesh supplier | ss310 stainless steel hex steel | thickness 2.0mm, height 19mm | standarded size 3’x10' | supplier China Hex-mesh supplier | ss310 stainless steel hex steel | thickness 2.0mm, height 19mm | standarded size 3’x10' | supplier

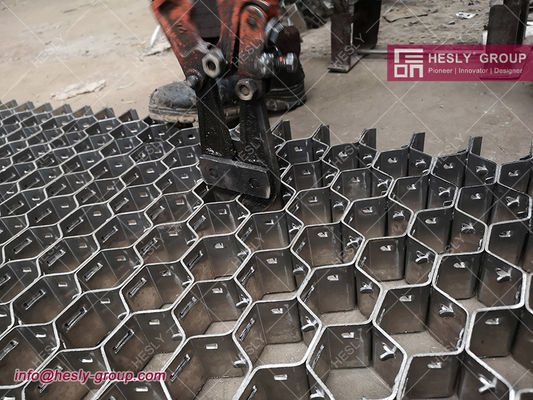

Large Image :  China Hex-mesh supplier | ss310 stainless steel hex steel | thickness 2.0mm, height 19mm | standarded size 3’x10' |

Product Details:

Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: HS-2.0/15/50

Payment & Shipping Terms:

Minimum Order Quantity: 1 ㎡
Price: Negotiated according to the order
Packaging Details: Pallet
Delivery Time: according to the order (in stock)
Payment Terms: TT/LC
Supply Ability: 800㎡/day
Contact Now
Detailed Product Description
Material: Ss310s, 0Cr25Ni20, Din1.4835 Thickness: 14G(2.0mm)
Height: 19mm, 20mm, 25mm,30mm, 50mm, 60mm Opening: 40mm, 50mm, 60mm

China ss310s, 0Cr25Ni20 Hex-mesh supplier

Hex mesh Refractory Lining is also known as hex metal, hex metal grating, hex steel mesh, Hex steel grill or hex steel grid. Metal Hex grid provides surface framework for reinforcement of the refractory or concrete material in linings. They are made of pressed strips riveted to each other to form the hexagonal apertures.

Hex metal refractory lining is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. The hex steel mesh acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of hex metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.

304H hex mesh refractory anchors 410s hex steel refractory anchors

Advantages of E-ON (HESLY)

E-ON's competitive Advantages

Much of our success at HESLY group, can be attributed to outstanding service, competitive pricing anda "deliver what we are going to or earlier" attitude. We often shiporders same day and are on call 24 hours a day, 7 day a week. www.hexsteel.net



HESLY hexsteel Typical Service Temperature:

Anchorage Material

Chemical Composition

Typical Service

Temperature

AISI

DIN

C%

Si%

Mn%

P%

S%

Cr%

Ni%

others

304

1.4301

≤0.08

≤1.00

≤2.00

≤0.45

≤0.30

18.0—20.0

8.0—10.0

N

800℃

316

1.4401/1.4436

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

16.0—18.0

10.0—14.0

N:Mo

800℃

321

1.4541

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

17.0—19.0

9.0—12.0

Ti

800℃

310S

1.4845

≤0.08

≤1.50

≤2.00

≤0.45

≤0.30

24.0—26.0

19.0—22.0

1150℃

Inconel 601

2.4851

≤0.10

≤0.50

≤1.00

≤0.15

21.0—25.0

58.0—63.0

Al:Cu

1200℃

Inconel 800

1.4876

≤0.10

≤1.00

≤1.50

≤0.45

≤0.15

19.0—23.0

30.0—35.0

Al:Ti

1200℃

410S

1.4001

≤0.08

≤1.00

≤1.00

≤0.40

≤0.30

11.5—13.5

≤0.60

750℃

CARBON STEEL

VARIOUS

550℃

HESLY-hexsteel ordinary specs:

HESLY-hexsteel ordinary specifications (E-ON refractory)

ITEM

SPECS

B

A

AF

1

1.2 X 10 X 50mm

1.2mm

10mm

40mm

2

1.2 X 15 X 50mm

1.2mm

15mm

50mm

3

1.2 X 20 X 50mm

1.2mm

20mm

50mm

4

1.5 X 10 X 50mm

1.5mm

10mm

50mm

5

1.5 X 15 X 50mm

1.5mm

15mm

50mm

6

1.5 X 20 X 50mm

1.5mm

20mm

50mm

7

1.8 X 15 X 50mm

1.8mm

15mm

50mm

8

1.8 X 20 X 50mm

1.8mm

20mm

50mm

9

1.8 X 25 X 50mm

1.8mm

25mm

50mm

10

2.0 X 15 X 50mm

2.0mm

15mm

50mm

11

2.0 X 20 X 50mm

2.0mm

20mm

50mm

12

2.0 X 25 X 50mm

2.0mm

25mm

50mm

13

2.0 X 30 X 50mm

2.0mm

30mm

50mm

14

2.0 X 30 X 80mm

2.0mm

30mm

80mm

Remark

A/F

Min: 40mm   Max: 100mm



MATERIAL

A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S

Reference Photos  China Hex Mesh Factory

310S hex mesh   410s HEXSTEEL

304 stainless steel hex mesh   316 hex mesh with lancing hole

refractory hex mesh with bonding hole   stainless steel hexsteel with lance

310S hex mesh   stainless steel hex steel

304SS hex metal with lances   flexible hex metal
