HESLY™ clinched, rectangular bar, AISI310S without protruding lances | 3'X10' | hemesh refractory lining

China HESLY™ clinched, rectangular bar,  AISI310S without protruding lances | 3'X10' | hemesh refractory lining supplier
HESLY™ clinched, rectangular bar,  AISI310S without protruding lances | 3'X10' | hemesh refractory lining supplier HESLY™ clinched, rectangular bar,  AISI310S without protruding lances | 3'X10' | hemesh refractory lining supplier HESLY™ clinched, rectangular bar,  AISI310S without protruding lances | 3'X10' | hemesh refractory lining supplier HESLY™ clinched, rectangular bar,  AISI310S without protruding lances | 3'X10' | hemesh refractory lining supplier HESLY™ clinched, rectangular bar,  AISI310S without protruding lances | 3'X10' | hemesh refractory lining supplier

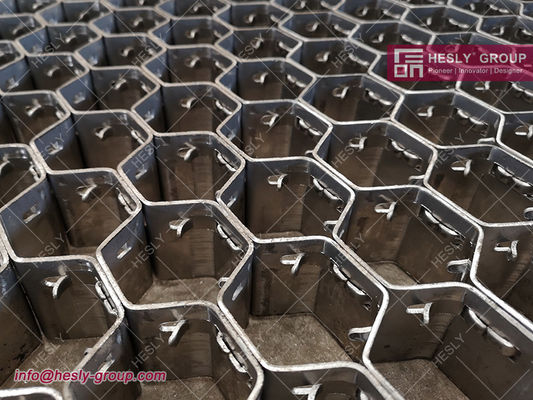

Large Image :  HESLY™ clinched, rectangular bar, AISI310S without protruding lances | 3'X10' | hemesh refractory lining

Product Details:

Place of Origin: HESLY METAL MESH, Anping, China
Brand Name: HESLY™
Certification: ISO9001:2008
Model Number: H-GJ19250310S

Payment & Shipping Terms:

Minimum Order Quantity: 1 SQM
Price: Negotiated according to the order
Packaging Details: Pallet
Delivery Time: according to the order (in stock)
Payment Terms: T/T, L/C at sight, D/P, Western Union
Supply Ability: 800㎡/day
Contact Now
Detailed Product Description
Construction Type: Clinched Bar Shape: Rectangular Bar
Primary Material: Stainless Steel Alloy, Grade Or Type: AISI 310S
Material Finish: Mill Finish Product Surface: Smooth
Sizes: 3'x10'

AISI310S Hex Mesh without protruding lances | 19mm height X 2mm thk | 3'X10' | metal grid

Hex mesh Hexagonal mesh or Hexmesh as it often referred to is a honey comb pattern of steel bars used to retain refractories in anti-abrasive and anti-corrosive thin wall linings used in the oil, petrochemical, metallurgical, chemical, and cement industries.



The HESLY™ range of hexagonal mesh comprises many different styles with or without protruding lances to meet the specifications set by process engineering companies and refractory suppliers.



HESLY™ hexagonal mesh can be supplied in flat panels manufactured from 19 tor 25mm thick plates and supplied in panels 2000x1000mm or rolled and tailored for welding to the walls of cyclones, reactors, furnaces and vessels.



316 stainless steel hexmetal with bonding hole Stainless Steel Hexmetal with lance China Supplier
Standard Bonding Hole Pattern Lance Pattern

HESLY HexMesh Typical Service Temperature:

Anchorage Material

Chemical Composition

Typical Service

Temperature

AISI

DIN

C%

Si%

Mn%

P%

S%

Cr%

Ni%

others

304

1.4301

≤0.08

≤1.00

≤2.00

≤0.45

≤0.30

18.0—20.0

8.0—10.0

N

800℃

316

1.4401/1.4436

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

16.0—18.0

10.0—14.0

N:Mo

800℃

321

1.4541

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

17.0—19.0

9.0—12.0

Ti

800℃

310S

1.4845

≤0.08

≤1.50

≤2.00

≤0.45

≤0.30

24.0—26.0

19.0—22.0

1150℃

Inconel 601

2.4851

≤0.10

≤0.50

≤1.00

≤0.15

21.0—25.0

58.0—63.0

Al:Cu

1200℃

Inconel 800

1.4876

≤0.10

≤1.00

≤1.50

≤0.45

≤0.15

19.0—23.0

30.0—35.0

Al:Ti

1200℃

410S

1.4001

≤0.08

≤1.00

≤1.00

≤0.40

≤0.30

11.5—13.5

≤0.60

750℃

CARBON STEEL

VARIOUS

550℃

Hexmesh Ordinary Specifications:

HEX-MESH / HEXMETAL / HEXSTEEL

ITEM

SPECS

B

A

AF

1

1.2 X 10 X 50mm

1.2mm

10mm

40mm

2

1.2 X 15 X 50mm

1.2mm

15mm

50mm

3

1.2 X 20 X 50mm

1.2mm

20mm

50mm

4

1.5 X 10 X 50mm

1.5mm

10mm

50mm

5

1.5 X 15 X 50mm

1.5mm

15mm

50mm

6

1.5 X 20 X 50mm

1.5mm

20mm

50mm

7

1.8 X 15 X 50mm

1.8mm

15mm

50mm

8

1.8 X 20 X 50mm

1.8mm

20mm

50mm

9

1.8 X 25 X 50mm

1.8mm

25mm

50mm

10

2.0 X 15 X 50mm

2.0mm

15mm

50mm

11

2.0 X 20 X 50mm

2.0mm

20mm

50mm

12

2.0 X 25 X 50mm

2.0mm

25mm

50mm

13

2.0 X 30 X 50mm

2.0mm

30mm

50mm

14

2.0 X 30 X 80mm

2.0mm

30mm

80mm

Remark

A/F

Min: 40mm   Max: 100mm



MATERIAL

A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti, 310S, 410S

HEX-MESH PHOTOS

HESLY™ clinched, rectangular bar,  AISI310S without protruding lances | 3'X10' | hemesh refractory lining HESLY™ clinched, rectangular bar,  AISI310S without protruding lances | 3'X10' | hemesh refractory lining
Hex Mesh clinched hex mesh
refractory hex metal mesh China Exporter refractory lining hexagonal metal grating
Hex-mesh with reinforced strip Hex Mesh with reinforced strip
AISI310S Hexmesh China Exporter hexagonal wire mesh China Supplier
12 gauge thick Hexsteel Mesh 12 gauge thick Hexmesh Sheet
stainless steel hex metal mesh stainless steel 304 hex steel mesh
Hex Metal Sheet Hex Metal Sheet





HESLY Refractory Hex Metal Mesh
