HESLY's Hex Steel Grating (Hex mesh, Hex metal) is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of Hexsteel's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the surface material because they are reflected away from the surface by the metal cellular grid.
Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration.
Standard Hexmesh
 |
|
|
Hexmesh: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
|
Hexmesh: Pronges/Lances Type

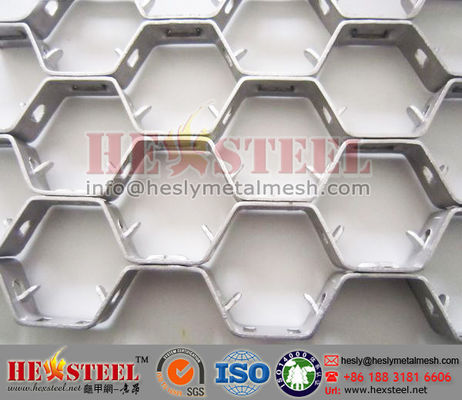

this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
|
Flexible Hexagonal Mesh
Flex Hexmetal is the direct counterpart of Hex metal. It performs all the same functions in reinforcement of thin wall refractory linings, while its' design allows free form rolling to very small diameters. Hex metal becomes impractical when the section of plant being protected is of small diameter. The free rolling capabilities of Flex metal allows plant as small as 150 mm to be lined. Typical applications include Air Distributors, Cyclone Dip legs, Fan Cases, or any other plants where the practicality of free rolling material is beneficial to maintenance activities.
|
|
| Standard Flexible Mesh |
Flexible Mesh with Lances |
Typical Service Temperature
| Anchorage Material |
Chemical Composition |
Typical Service
Temperature
|
| AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
| 304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
| 316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
| 321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
| 310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
| Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
| Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
| 410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
| CARBON STEEL |
VARIOUS |
550℃ |
Hexmesh Common Specification Sheet
| HEX-MESH / HEXMETAL / HEXSTEEL |
| ITEM |
SPECS |
B |
A |
AF |
| 1 |
1.2 X 10 X 50mm |
1.2mm |
10mm |
40mm |
| 2 |
1.2 X 15 X 50mm |
1.2mm |
15mm |
50mm |
| 3 |
1.2 X 20 X 50mm |
1.2mm |
20mm |
50mm |
| 4 |
1.5 X 10 X 50mm |
1.5mm |
10mm |
50mm |
| 5 |
1.5 X 15 X 50mm |
1.5mm |
15mm |
50mm |
| 6 |
1.5 X 20 X 50mm |
1.5mm |
20mm |
50mm |
| 7 |
1.8 X 15 X 50mm |
1.8mm |
15mm |
50mm |
| 8 |
1.8 X 20 X 50mm |
1.8mm |
20mm |
50mm |
| 9 |
1.8 X 25 X 50mm |
1.8mm |
25mm |
50mm |
| 10 |
2.0 X 15 X 50mm |
2.0mm |
15mm |
50mm |
| 11 |
2.0 X 20 X 50mm |
2.0mm |
20mm |
50mm |
| 12 |
2.0 X 25 X 50mm |
2.0mm |
25mm |
50mm |
| 13 |
2.0 X 30 X 50mm |
2.0mm |
30mm |
50mm |
| 14 |
2.0 X 30 X 80mm |
2.0mm |
30mm |
80mm |
| Remark |
A/F |
Min: 40mm Max: 100mm |
| |
MATERIAL |
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti, 310S, 410S |
