Stainless Steel 304H Hex Mesh Reactors | 19mm depth, 1.5mm thickness | Hexagonal hole - Hesly Brand, China

China Stainless Steel 304H Hex Mesh Reactors | 19mm depth, 1.5mm thickness | Hexagonal hole - Hesly Brand, China supplier
Stainless Steel 304H Hex Mesh Reactors | 19mm depth, 1.5mm thickness | Hexagonal hole - Hesly Brand, China supplier Stainless Steel 304H Hex Mesh Reactors | 19mm depth, 1.5mm thickness | Hexagonal hole - Hesly Brand, China supplier Stainless Steel 304H Hex Mesh Reactors | 19mm depth, 1.5mm thickness | Hexagonal hole - Hesly Brand, China supplier Stainless Steel 304H Hex Mesh Reactors | 19mm depth, 1.5mm thickness | Hexagonal hole - Hesly Brand, China supplier Stainless Steel 304H Hex Mesh Reactors | 19mm depth, 1.5mm thickness | Hexagonal hole - Hesly Brand, China supplier

Large Image :  Stainless Steel 304H Hex Mesh Reactors | 19mm depth, 1.5mm thickness | Hexagonal hole - Hesly Brand, China

Product Details:

Place of Origin: EON Company, CHINA
Brand Name: HESLY
Certification: ISO9001, SGS
Model Number: H-GJ22550304H

Payment & Shipping Terms:

Minimum Order Quantity: 10 SQM
Price: USD 18.50 to USD72.00/SQM
Packaging Details: Steel Pallet
Delivery Time: 12 working days/20'GP
Payment Terms: T/T, L/C at sight, D/P
Supply Ability: 500SQM / day
Contact Now
Detailed Product Description
Material: AISI304H Strip Technial: Perforated & Riveting
Hole: Hexagonal 50X50mm Etc Height: 10mm/15mm/25mm/30mm/50mm
Strip THK: 1.0/1.2/1.5/2.0mm Etc Panel Size: 1X1m, 914X3050mm

Stainless Steel 304H Hex Mesh Reactors | 19mm depth, 1.5mm thickness | Hexagonal hole - Hesly Brand, China

HESLY’s Hexmesh range is defined as a unique hexagonal cellular mesh steel, made of flat bar which is designed to provide brilliant retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining’s upper crust, retarding erosion, corrosion, blistering and cracking.



FOR REFRACTORIES
The flexibility, high strength and erosion resistant characteristics of Hexmesh make it an excellent choice for refractory linings in furnaces, reactors, cyclones, ducts and flues.
FOR FLOORS
Hexmesh provides long term protection for armor applications inside industrial floors. Specifically, loading docks, ramps, high traffic aisles for forklifts and trucks. Hot floors for foundries, forge shops and steel mills. Refuse and recycle disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads. All will benefit with Hexmesh

Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.


The flexibility of HESLY’s Hex Mesh allows it to be rolled, and easily conforms to circular shapes. It is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the metal shell and the armoured surface.

Flexible Mesh

Flex Hexmetal is the direct counterpart of Hex metal. It performs all the same functions in reinforcement of thin wall refractory linings, while its' design allows free form rolling to very small diameters. Hex metal becomes impractical when the section of plant being protected is of small diameter. The free rolling capabilities of Flex metal allows plant as small as 150 mm to be lined. Typical applications include Air Distributors, Cyclone Dip legs, Fan Cases, or any other plants where the practicality of free rolling material is beneficial to maintenance activities.



Main style of HESLY Hex Mesh

HESLY Hexsteel China Factory HESLY Hexsteel China Factory

Hexsteel: Bonding Hole Type

Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

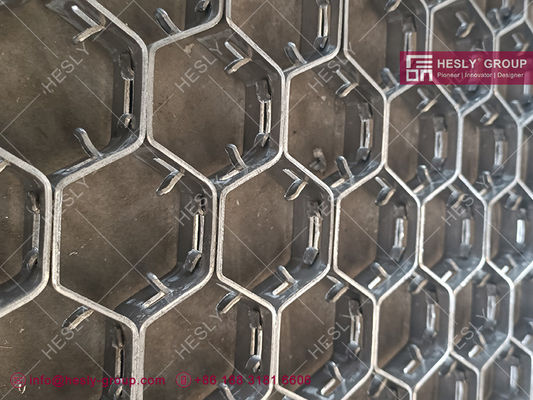

Hex-metal: Pronges/Lances Type

this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.



double clench bonding hexmesh Offset clench Hexmesh
Double Clench Bonding Hexmesh Offset Clench Hexmetal



Application of HESLY Hex mesh:

Hex mesh is flexible and easily conforms to circular shapes, which allows it to be rolled. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.

Hex steel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.

Typical Service Temperature of Various Stainless Steel Grade

Stainless steel wire is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in hex mesh. 304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties.

Anchorage Material Chemical Composition

Typical Service

Temperature

AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 750℃
CARBON STEEL VARIOUS 550℃



Common Specification Sheet

ITEM SPECS B A AF
1 1.2 X 10 X 50mm 1.2mm 10mm 40mm
2 1.2 X 15 X 50mm 1.2mm 15mm 50mm
3 1.2 X 20 X 50mm 1.2mm 20mm 50mm
4 1.5 X 10 X 50mm 1.5mm 10mm 50mm
5 1.5 X 15 X 50mm 1.5mm 15mm 50mm
6 1.5 X 20 X 50mm 1.5mm 20mm 50mm
7 1.8 X 15 X 50mm 1.8mm 15mm 50mm
8 1.8 X 20 X 50mm 1.8mm 20mm 50mm
9 1.8 X 25 X 50mm 1.8mm 25mm 50mm
10 2.0 X 15 X 50mm 2.0mm 15mm 50mm
11 2.0 X 20 X 50mm 2.0mm 20mm 50mm
12 2.0 X 25 X 50mm 2.0mm 25mm 50mm
13 2.0 X 30 X 50mm 2.0mm 30mm 50mm
14 2.0 X 30 X 80mm 2.0mm 30mm 80mm
Remark A/F Min: 40mm Max: 100mm
  MATERIAL A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S

Double Clench Bonding Hexmesh Gallery

Photo Gallery - HESLY Hexsteel Mesh
310S Hexmesh Hexmetal for Cat Crackers
310S Hexmesh Hexmesh for Cat Crackers
hex steel mesh with prongs 410S Hex-Mesh Duct Linings
HESLY HexMesh 1" Depth Hexmetal
Duct Lining Hexmetal Factory China Reactors Hexmetal
Hexsteel Refractory Linings Hex Steel Mesh China Factory



Package and Delivery



stainless steel 321 hexmetal mesh 321 stainless steel hexsteel refractory lining
Hexmesh Factory Sales Hexmetal Factory Exporter



HESLY Refractory Hex Metal Mesh
