Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings

China Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings supplier
Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings supplier Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings supplier Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings supplier Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings supplier Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings supplier

Large Image :  Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings

Product Details:

Place of Origin: Hesly Metal Mesh, CHINA
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: HEX1519F

Payment & Shipping Terms:

Minimum Order Quantity: 50 ㎡
Price: US$15.00-US$80.00
Packaging Details: Pallet
Delivery Time: according to the order (in stock)
Payment Terms: TT/LC
Supply Ability: 800㎡/day
Contact Now
Detailed Product Description
Raw Material: Mild Steel / Stainless Steel Thickness: 1.5mm
Height: 19mm Sheet Size: 500X1000mm

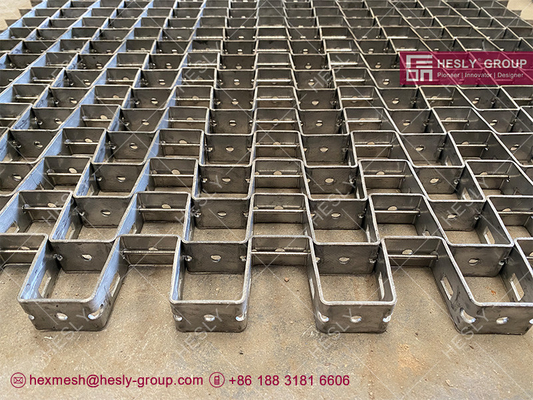

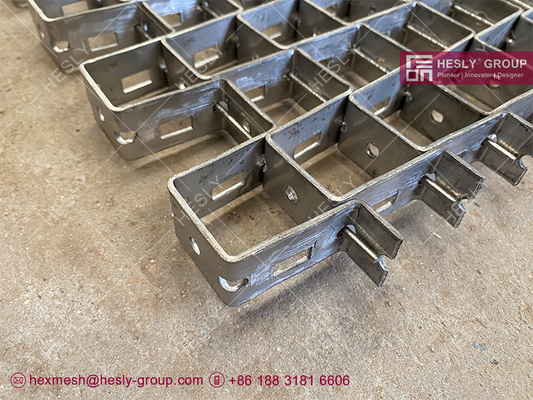

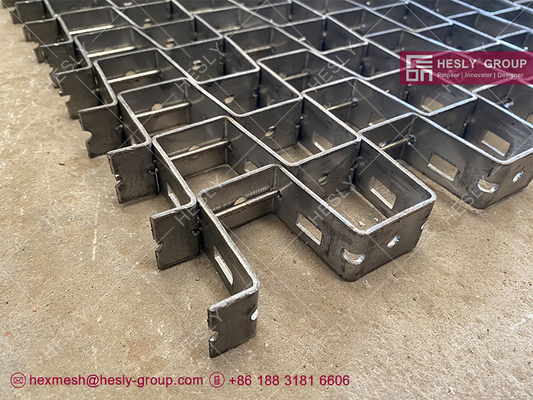

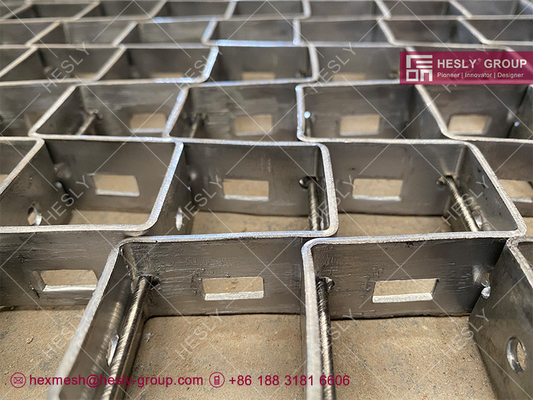

Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings

flex metal meshFlex metal refractory lining is the direct counterpart of hex metal, it performs all the same functions of reinforcement of thin wall refractory linings, while its design allows free form rolling to very small diameters. Hex metal becomes impractical to use when the section of plant being protected is of small diameter, the free rolling capabilities of flex metal allows plant as small as 150mm to lined. Typical applications include air distributors, cyclone diplegs, fan cases and all plants where the practicality of free rolling material is beneficial to maintenance activities

Flex Metal Applications

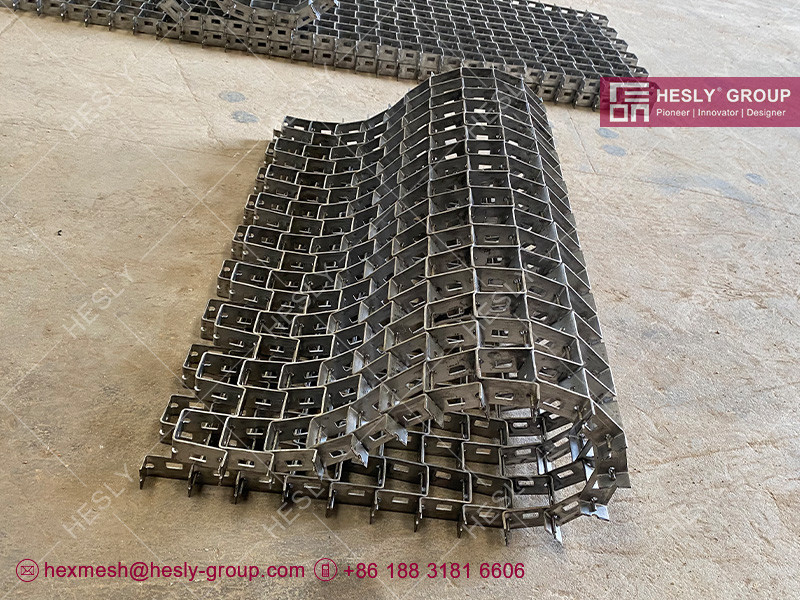

Since hexmesh’s flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape.

FOR REFRACTORIES
The flexibility, high strength and erosion resistant characteristics of Hexmesh make it an excellent choice for refractory linings in furnaces, reactors, cyclones, ducts and flues.
FOR FLOORS
Hexmesh provides long term protection for armor applications inside industrial floors. Specifically, loading docks, ramps, high traffic aisles for forklifts and trucks. Hot floors for foundries, forge shops and steel mills. Refuse and recycle disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads. All will benefit with Hexmesh

Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.



flexible mesh China Flexible Mesh China Supplier
Standard Bonding Hole Pattern Lance Pattern

Common Specification Sheet

HESLY Flexible Metal Mesh
Model Strips Rod Width Length Weight
Depth Thickness
HFM2520 25mm 1” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM2515 25mm 1” 1.5mm 17 GA 3.0mm 1.0m 1.5m
HFM1920 19mm 3/4” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM1915 19mm 3/4” 1.5mm 17 GA 3.0mm 1.0m 1.5m
HFM1620 16mm 5/8” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM1615 16mm 5/8” 1.5mm 17 GA 3.0mm 1.0m 1.5m
HFM1420 14mm 9/16” 2.0mm 14 GA 3.0mm 1.0m 1.5m
HFM1415 14mm 9/16” 1.5mm 17 GA 3.0mm 1.0m 1.5m

Typical Service Temperature

Anchorage Material Chemical Composition

Typical Service

Temperature

AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 750℃
CARBON STEEL VARIOUS 550℃



Flexible Metal Mesh Gallery


Flexible Metal Mesh China Supplier Flexible Metal Mesh China Factory
Flexible Metal Mesh Factory Standard Flexible Mesh
Refractory Lining Flexible Mesh Flexible Mesh China Plant
Flexible Metal Mesh Factory Flexible Metal Mesh China
standard flexible metal HESLY Flexible Mesh
Flexible Metal Refractory Linings Flex Metal Mesh China Factory



Package and Delivery



Hexmetal Refractory Tabs CHINA HEXMETAL
China Hexmesh Factory China Hexmetal Exporter



HESLY Refractory Hex Metal Mesh
