AISI 321 Hex metal for refractory linings | Use 4’x8’ stainless steel plate as material

China AISI 321 Hex metal for refractory linings | Use 4’x8’ stainless steel plate as material supplier
AISI 321 Hex metal for refractory linings | Use 4’x8’ stainless steel plate as material supplier AISI 321 Hex metal for refractory linings | Use 4’x8’ stainless steel plate as material supplier AISI 321 Hex metal for refractory linings | Use 4’x8’ stainless steel plate as material supplier AISI 321 Hex metal for refractory linings | Use 4’x8’ stainless steel plate as material supplier AISI 321 Hex metal for refractory linings | Use 4’x8’ stainless steel plate as material supplier

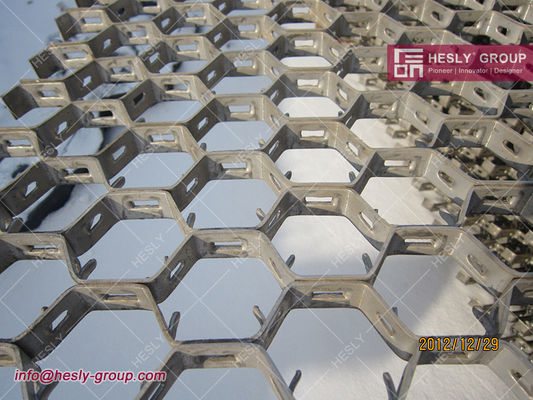

Large Image :  AISI 321 Hex metal for refractory linings | Use 4’x8’ stainless steel plate as material

Product Details:

Place of Origin: E-on hexmesh, Anping, China
Brand Name: HESLY
Certification: ISO9001:2008
Model Number: HS-2.0/20/50

Payment & Shipping Terms:

Minimum Order Quantity: 1 ㎡
Price: negotiated as per the order
Packaging Details: Pallet
Delivery Time: according to the order (in stock)
Payment Terms: TT/LC
Supply Ability: 800㎡/day
Contact Now
Detailed Product Description
Material: Ss321 Stainless Steel Plate Thickness: 2.0mm
Height: 1" Size: 960mm

Hex Metal, Hex metal for refractory linings, Hexmetal for Cyclones, Hex-metal

HESLY hex metal, hex mesh & hexsteel, your best choice for  Anchoring & Reinforcement for Refractories and Concrete Flooring !!!

DESCRIPTION OF HESLY HEX METAL

HESLY Steel’s Hex Metal range is defined as a unique hexagonal cellular mesh steel, made of flat bar which is designed to provide brilliant retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining’s upper crust, retarding erosion, corrosion, blistering and cracking.
Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.
The flexibility of HESLY Steel’s Hex Metal allows it to be rolled, and easily conforms to circular shapes. It is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the metal shell and the armoured surface.
hex metal

USES FOR HESLY HEX METAL

Refractory Linings in Furnaces | Ducts and Flue Gas Lines | Cyclones | Reactors | Reactor Vessels | Windboxes | Fan Casings | Regenerators | Tanks | Ashpits | Heaters


INDUSTRIES OF HESLY HEX METAL

Air Distributors | All Plants where the Practicality of Free Rolling Material is Beneficial to Maintenance Activities | Power Plants Cement Plants | Steel Plants | Petroleum Sector | Chemical Industry

Advantages of E-ON (HESLY)

HESLY's competitive Advantages

Much of our success at HESLY group, can be attributed to outstanding service, competitive pricing anda "deliver what we are going to or earlier" attitude. We often shiporders same day and are on call 24 hours a day, 7 day a week. www.hexsteel.net

HESLY hexmesh Typical Service Temperature:

Anchorage Material

Chemical Composition

Typical Service

Temperature

AISI

DIN

C%

Si%

Mn%

P%

S%

Cr%

Ni%

others

304

1.4301

≤0.08

≤1.00

≤2.00

≤0.45

≤0.30

18.0—20.0

8.0—10.0

N

800℃

316

1.4401/1.4436

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

16.0—18.0

10.0—14.0

N:Mo

800℃

321

1.4541

≤0.08

≤0.75

≤2.00

≤0.45

≤0.30

17.0—19.0

9.0—12.0

Ti

800℃

310S

1.4845

≤0.08

≤1.50

≤2.00

≤0.45

≤0.30

24.0—26.0

19.0—22.0

1150℃

Inconel 601

2.4851

≤0.10

≤0.50

≤1.00

≤0.15

21.0—25.0

58.0—63.0

Al:Cu

1200℃

Inconel 800

1.4876

≤0.10

≤1.00

≤1.50

≤0.45

≤0.15

19.0—23.0

30.0—35.0

Al:Ti

1200℃

410S

1.4001

≤0.08

≤1.00

≤1.00

≤0.40

≤0.30

11.5—13.5

≤0.60

750℃

CARBON STEEL

VARIOUS

550℃



Features of Stainless Steel which used for Hex Mesh:

SS

Features

304

Good heat resistance ,corrosion resistance ,strength at low temperature and mechanical

properties, good hot working performance  for example punching,bending,etc , no heat

treatment influence phenomenon(nonmagnetic,U-96°C-800°C).

304L

As one kind of low carbon SS304,In the general, the similar corrosion resistance with

SS 304 .But after welding or in eliminating stress, the outstanding ability of the resistance

to corrosion of grain boundaries In under the condition of no-heat treatment, maintain

good corrosion resistance,Used in -196°C~800°C.

316

Owing to add to Mo,So the corrosion resistance of atmospheric and high temperature

strength are very good,Can be used in harsh conditions ,Processing sclerosing optimal

(nonmagnetic).

316L

As one kind of low carbon series SSS316, in addition to the same feature of  SS316,

Optimal resistance to corrosion of grain boundaries

310S

As heat-resistant part in the under the temperature 1100°C,Oxidation stability  steel ,etc

HESLY hex metal ordinary specs:

HESLY-hexsteel ordinary specifications

ITEM

SPECS

B

A

AF

1

1.2 X 10 X 50mm

1.2mm

10mm

40mm

2

1.2 X 15 X 50mm

1.2mm

15mm

50mm

3

1.2 X 20 X 50mm

1.2mm

20mm

50mm

4

1.5 X 10 X 50mm

1.5mm

10mm

50mm

5

1.5 X 15 X 50mm

1.5mm

15mm

50mm

6

1.5 X 20 X 50mm

1.5mm

20mm

50mm

7

1.8 X 15 X 50mm

1.8mm

15mm

50mm

8

1.8 X 20 X 50mm

1.8mm

20mm

50mm

9

1.8 X 25 X 50mm

1.8mm

25mm

50mm

10

2.0 X 15 X 50mm

2.0mm

15mm

50mm

11

2.0 X 20 X 50mm

2.0mm

20mm

50mm

12

2.0 X 25 X 50mm

2.0mm

25mm

50mm

13

2.0 X 30 X 50mm

2.0mm

30mm

50mm

14

2.0 X 30 X 80mm

2.0mm

30mm

80mm

Remark

A/F

Min: 40mm   Max: 100mm



MATERIAL

A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S

HESLY hex metal are used as the lining of Cyclone:

cyclone with hexmesh

cyclone with hex-mesh

cyclone with hexsteel

welded hexmesh







anping hexmesh

anping hexsteel

hexmesh refractory lining

hexmesh
