1' height Hexmesh for Refractory Linings in cyclones | China Hex-Mesh Supplier | 1mx2m, 30pcs/pallet
Detailed Product Description
| Material: |
410s, 304, 304H, 310s, Low Carbon Mild Steel |
Gauge: |
14Ga(2.0mm) |
| Standard Size: |
1m Wide, 2m Long |
Standard Thickness: |
25mm |
| Standard Package: |
30 Panels Per Pallet |

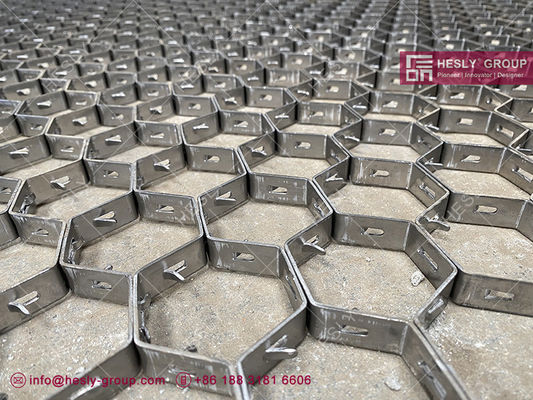

1m wide, 2m long standard Hexmesh For Refractory Lining in cyclones, China Hex-Mesh Supplier
China HESLY Hex Mesh - Refractory Lining
HESLY's Hexmesh (Hex steel, Hex metal) is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of Hexsteel's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the surface material because they are reflected away from the surface by the metal cellular grid.
As refractories, hex steel mesh’s characteristics are flexibility, high strength, and erosion resistance. Hex mesh is excellent for refractory linings in furnaces, reactors, cyclones, ducts, and flues.
Hex steel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation, and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.
Typical Service Temperature For Different Material - Hesly Hexmesh
|
Anchorage Material
|
Chemical Composition
|
Typical Service
Temperature
|
|
AISI
|
DIN
|
C%
|
Si%
|
Mn%
|
P%
|
S%
|
Cr%
|
Ni%
|
others
|
|
304
|
1.4301
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.45
|
≤0.30
|
18.0—20.0
|
8.0—10.0
|
N
|
800℃
|
|
316
|
1.4401/1.4436
|
≤0.08
|
≤0.75
|
≤2.00
|
≤0.45
|
≤0.30
|
16.0—18.0
|
10.0—14.0
|
N:Mo
|
800℃
|
|
321
|
1.4541
|
≤0.08
|
≤0.75
|
≤2.00
|
≤0.45
|
≤0.30
|
17.0—19.0
|
9.0—12.0
|
Ti
|
800℃
|
|
310S
|
1.4845
|
≤0.08
|
≤1.50
|
≤2.00
|
≤0.45
|
≤0.30
|
24.0—26.0
|
19.0—22.0
|
—
|
1150℃
|
|
Inconel 601
|
2.4851
|
≤0.10
|
≤0.50
|
≤1.00
|
—
|
≤0.15
|
21.0—25.0
|
58.0—63.0
|
Al:Cu
|
1200℃
|
|
Inconel 800
|
1.4876
|
≤0.10
|
≤1.00
|
≤1.50
|
≤0.45
|
≤0.15
|
19.0—23.0
|
30.0—35.0
|
Al:Ti
|
1200℃
|
|
410S
|
1.4001
|
≤0.08
|
≤1.00
|
≤1.00
|
≤0.40
|
≤0.30
|
11.5—13.5
|
≤0.60
|
—
|
750℃
|
|
CARBON STEEL
|
VARIOUS
|
550℃
|
Features of Stainless Steel which used for Hex Mesh
|
SS
|
Features
|
|
304
|
Good heat resistance ,corrosion resistance ,strength at low temperature and mechanical
properties, good hot working performance for example punching,bending,etc , no heat
treatment influence phenomenon(nonmagnetic,U-96°C-800°C).
|
|
304L
|
As one kind of low carbon SS304,In the general, the similar corrosion resistance with
SS 304 .But after welding or in eliminating stress, the outstanding ability of the resistance
to corrosion of grain boundaries In under the condition of no-heat treatment, maintain
good corrosion resistance,Used in -196°C~800°C.
|
|
316
|
Owing to add to Mo,So the corrosion resistance of atmospheric and high temperature
strength are very good,Can be used in harsh conditions ,Processing sclerosing optimal
(nonmagnetic).
|
|
316L
|
As one kind of low carbon series SSS316, in addition to the same feature of SS316,
Optimal resistance to corrosion of grain boundaries
|
|
310S
|
As heat-resistant part in the under the temperature 1100°C,Oxidation stability steel ,etc
|
General Specification Sheet
|
HESLY-hex Metal ordinary specifications
|
|
ITEM
|
SPECS
|
B
|
A
|
AF
|
|
1
|
1.2 X 10 X 50mm
|
1.2mm
|
10mm
|
40mm
|
|
2
|
1.2 X 15 X 50mm
|
1.2mm
|
15mm
|
50mm
|
|
3
|
1.2 X 20 X 50mm
|
1.2mm
|
20mm
|
50mm
|
|
4
|
1.5 X 10 X 50mm
|
1.5mm
|
10mm
|
50mm
|
|
5
|
1.5 X 15 X 50mm
|
1.5mm
|
15mm
|
50mm
|
|
6
|
1.5 X 20 X 50mm
|
1.5mm
|
20mm
|
50mm
|
|
7
|
1.8 X 15 X 50mm
|
1.8mm
|
15mm
|
50mm
|
|
8
|
1.8 X 20 X 50mm
|
1.8mm
|
20mm
|
50mm
|
|
9
|
1.8 X 25 X 50mm
|
1.8mm
|
25mm
|
50mm
|
|
10
|
2.0 X 15 X 50mm
|
2.0mm
|
15mm
|
50mm
|
|
11
|
2.0 X 20 X 50mm
|
2.0mm
|
20mm
|
50mm
|
|
12
|
2.0 X 25 X 50mm
|
2.0mm
|
25mm
|
50mm
|
|
13
|
2.0 X 30 X 50mm
|
2.0mm
|
30mm
|
50mm
|
|
14
|
2.0 X 30 X 80mm
|
2.0mm
|
30mm
|
80mm
|
|
Remark
|
A/F
|
Min: 40mm Max: 100mm
|
| |
MATERIAL
|
A3 ,0Cr13,ss304,ss316,ss321,ss310S
|
